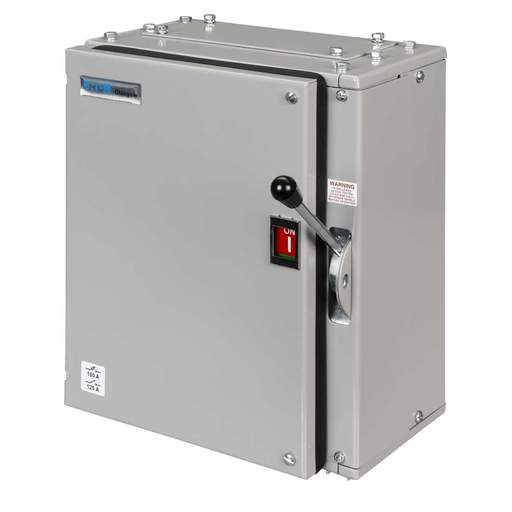

Eaton Glasgow 100A TP+N Fuse Switch Disconnector
Part Code: 103GN
Stock Code: 2712-8656
Eaton Glasgow 100A TP+N Fuse Switch Disconnector
Part Code: 103GN
Stock Code: 2712-8656
Features
- Neutral makes first and breaks last
- Suitable fuse links SB3, SB4, SO and SD5
- Suitable fuses, fuse links and switch links are sold separately
Downloads
Specifications
- All images and text, © Copyright City Electrical Factors Ltd
- All images and text, © Copyright City Electrical Factors Ltd
- Brand
- Eaton Electric
- Current Rating
- 100A
- Depth
- 193mm
- Dimensions
- (H)341 mm x (W)279 mm x (D)193 mm
- Guarantee
- 1 Year
- Handle Type
- Retractable
- Height
- 341mm
- Lockable
- Yes
- Material
- Metal
- Mounting
- Surface
- Number of Poles
- Triple Pole and Neutral
- Packaging Types
- Each
- Product Range
- Glasgow
- Standards
- BS EN 60947-3
- Terminal Capacity
- 50mm²
- Type
- Fuse Switch Disconnector
- Unspsc V18
- 39121116
- Unspsc V24
- 39121116
- Voltage Rating
- 415V
- Weight
- 8.34000kg
- Width
- 279mm
