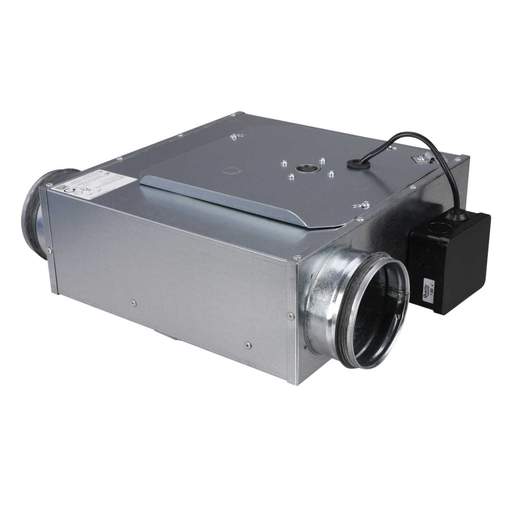

Greenwood Zehnder 4" 100mm Low Profile Induct Fan
Part Code: LPID100
Stock Code: 2713-0555
Greenwood Zehnder 4" 100mm Low Profile Induct Fan
Part Code: LPID100
Stock Code: 2713-0555
Features
- Designed to fit within a ceiling void, cupboard or loft space
- 100% variable speed control commissioning via SDC1 controller
- Secondary switch or isolator can be utilised to activate the unit following commissioning via SDC1 controller
- Can be installed in any orientation, horizontal, vertical, on floor, wall or ceiling
- 4 air changes an hour for rooms up to ~12 m² per fan, large rooms can use multiple fans wired in parallel
Downloads
Specifications
- All images and text, © Copyright City Electrical Factors Ltd
- All images and text, © Copyright City Electrical Factors Ltd
- Brand
- Greenwood Air Management
- Airflow Cubic Metresper Hour
- 250 m³/h
- Airflow Litresper Second
- 69 l/s
- Decibel Rating
- 35.3 dB[A] @ 3 m
- Depth
- 330mm
- Dimensions
- (D)330 mm
- Ducting Size
- 100mm
- Guarantee
- 1 Year
- Hole Size
- 100mm
- Material
- Galvanised sheet steel
- Mounting
- Inline
- Packaging Types
- Each
- Power Rating
- 54W
- Unspsc V18
- 40101502
- Unspsc V24
- 40101502
- Voltage Rating
- 230V
- Weight
- 4.90000kg
