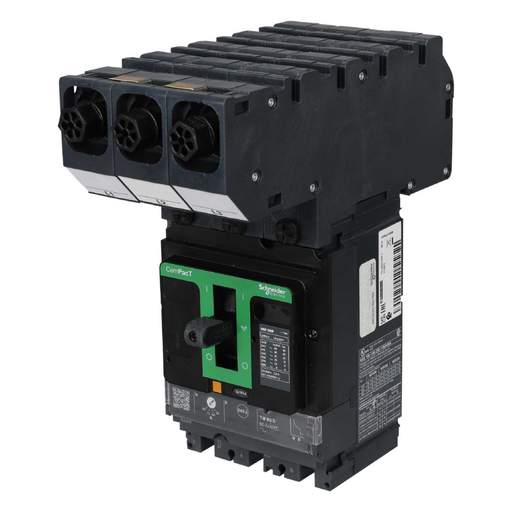

Schneider Merlin Powerpact4 80A Triple Pole 36kA NSX MCCB
Part Code: PP40803X
Stock Code: 2719-7179
Schneider Merlin Powerpact4 80A Triple Pole 36kA NSX MCCB
Part Code: PP40803X
Stock Code: 2719-7179
Features
- Suitable for the Powerpact 4 Panelboards
- Breaking capacity 36kA at 415V
- Triple Pole
- [this item supersedes MGP0803X]
Downloads
Specifications
- All images and text, © Copyright City Electrical Factors Ltd
- All images and text, © Copyright City Electrical Factors Ltd
- Brand
- Schneider Merlin Powerpact4
- Current Rating
- 80A
- Depth
- 86mm
- Dimensions
- (H)161 mm x (W)105 mm x (D)86 mm
- Guarantee
- 18 Months
- Height
- 161mm
- Mounting
- Panel
- Number of Modules
- 3
- Number of Poles
- Triple Pole
- Packaging Types
- Each
- Product Range
- Powerpact 4
- Short Circuit Rating
- 36kA
- Unspsc V18
- 39121616
- Unspsc V24
- 39121616
- Voltage Rating
- 415V
- Weight
- 2.05000kg
- Width
- 105mm
