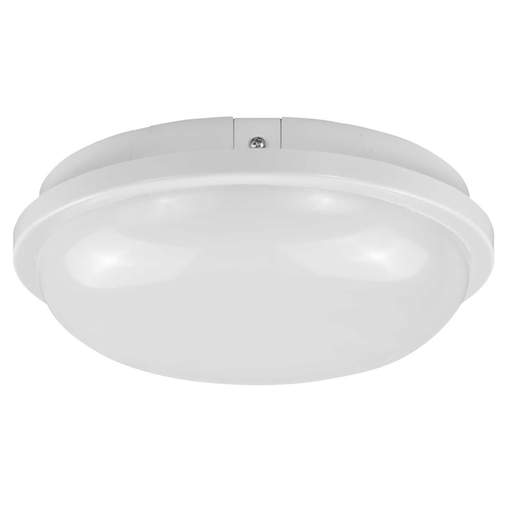

Fusion 12W LED Orbit Bulkhead
Part Code: FORBIT
Stock Code: 2719-8916
Fusion 12W LED Orbit Bulkhead
Part Code: FORBIT
Stock Code: 2719-8916
Features
- Quick easy installation with surface mounting bracket
- Pre-wired with 300mm cable

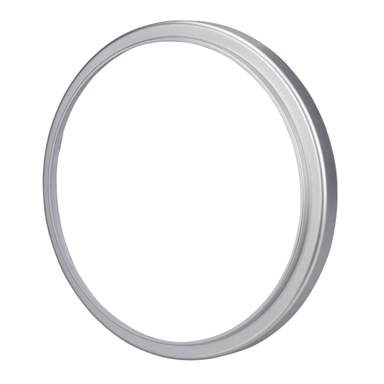

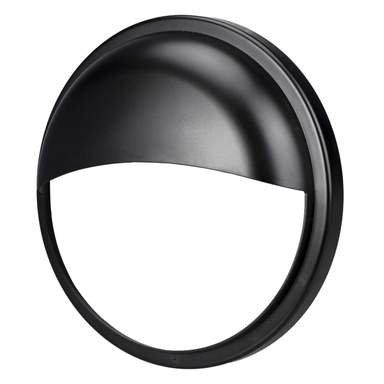

- Optional clip-on bezels available
Downloads
Specifications
- All images and text, © Copyright City Electrical Factors Ltd
- All images and text, © Copyright City Electrical Factors Ltd
- Brand
- Fusion
- Beam Angle
- 120°
- Class Type
- Class 2
- Colour
- White
- Colour Rendering Index(Cri)
- 80
- Colour Temperature
- 4000 K
- Compliance
- UKCA, CE
- Depth
- 72mm
- Diameter
- 221mm
- Dimensions
- (Dia)221 mm x (D)72 mm
- Dimmable
- No
- Emergency
- No
- Energy Rating
- F
- Finish
- White
- Guarantee
- 3 Years
- IP Rating
- IP65
- Ik Rating
- IK06
- Lamp Life
- 25000h
- Led Type
- Integrated LED
- Lens Colour
- Opal
- Lumens Output
- 1200lm
- Material
- Polycarbonate [Body] Zinc coated Iron [Bracket]
- Mercury Content
- 0
- Mounting
- Surface
- Operating Temperature Range
- -20 - 45°C
- Packaging Types
- Box
- Power Rating
- 12W
- Sensor
- No
- Shape
- Round
- Standards
- EN60529, EN55015, EN61000-3-2, EN6100-3-3, EN61547a, EN60598-1, EN60598-2-2, EN61031, EN62493
- Unspsc V18
- 39111544
- Unspsc V24
- 39111544
- Voltage Rating
- 230V
- Weight
- 0.58500kg
