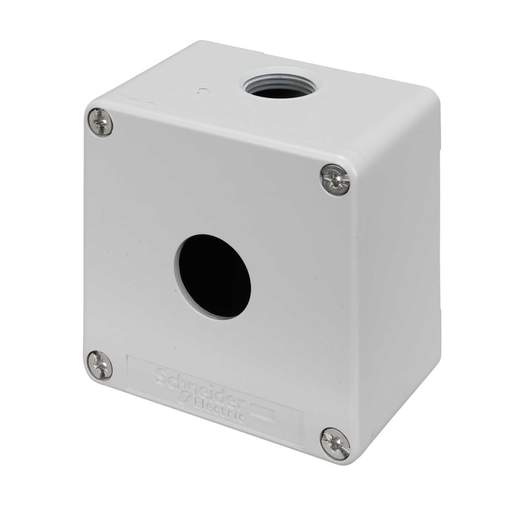

Schneider Harmony 1 Hole Die-Cast Empty Pushbutton Station Grey IP65
Part Code: XAPD1201
Stock Code: 2720-3497
Schneider Harmony 1 Hole Die-Cast Empty Pushbutton Station Grey IP65
Part Code: XAPD1201
Stock Code: 2720-3497
Features
- Surface mounted empty control station
- 49mm useable depth
- 1 cut out - 22mm
- Harmony XAP range
- Die-cast enclosure
- 1 hole with blanking plug for M20 cable gland
- 1 hole without blanking plug for M20 cable gland
Downloads
Specifications
- All images and text, © Copyright City Electrical Factors Ltd
- All images and text, © Copyright City Electrical Factors Ltd
- Cable Entry
- 2 x 20mm
- Colour
- Grey
- Cut Out
- 22mm
- Depth
- 51.5mm
- Dimensions
- (H)80 mm x (W)80 mm x (D)51.5 mm
- Guarantee
- 18 Months
- Height
- 80mm
- IP Rating
- IP65
- Material
- Die-Cast Zinc
- Mounting
- Surface
- Number of Ways
- 1
- Packaging Types
- Each
- Product Range
- Harmony XAP
- Unspsc V18
- 39121326
- Unspsc V24
- 39121326
- Weight
- 0.45500kg
- Width
- 80mm
