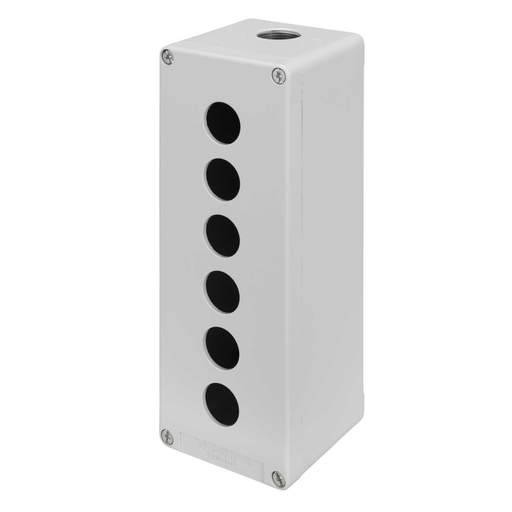

Schneider Harmony 6 Hole Die-Cast Empty Pushbutton Station Grey IP65
Part Code: XAPD4506
Stock Code: 2720-3578
Schneider Harmony 6 Hole Die-Cast Empty Pushbutton Station Grey IP65
Part Code: XAPD4506
Stock Code: 2720-3578
Features
- Surface mounted empty control station
- 74.5mm useable depth
- 6 Cut outs - 22mm
- Harmony XAP range
- Die-cast enclosure
- 1 Hole with blanking plug for M25 cable gland
Downloads
Specifications
- All images and text, © Copyright City Electrical Factors Ltd
- All images and text, © Copyright City Electrical Factors Ltd
- Cable Entry
- 1 x 25mm
- Colour
- Grey
- Cut Out
- 22mm
- Depth
- 77mm
- Dimensions
- (H)220 mm x (W)80 mm x (D)77 mm
- Guarantee
- 18 Months
- Height
- 220mm
- IP Rating
- IP65
- Material
- Die-Cast Zinc
- Mounting
- Surface
- Number of Ways
- 6
- Packaging Types
- Each
- Product Range
- Harmony XAP
- Unspsc V18
- 39121326
- Unspsc V24
- 39121326
- Weight
- 1.38000kg
- Width
- 80mm
