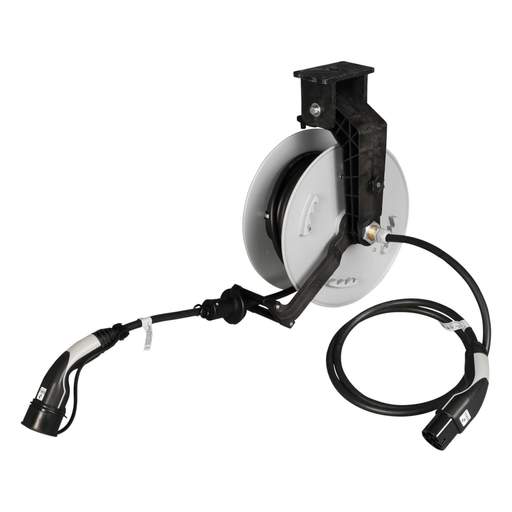

Schill 8m 22kW Type 2 Spring Return EV Cable Reel IP44
Part Code: 62090010000
Stock Code: 2720-4394
Schill 8m 22kW Type 2 Spring Return EV Cable Reel IP44
Part Code: 62090010000
Stock Code: 2720-4394
Features
- 22kW [wound or unwound]
- Spring retractable electric vehicle [EV] reel
- 8m + 2m 6mm² cable, terminated with type 2 connector/plug
- Auto-reset thermal management
- Manual on/off cable retraction ratchet
- Wall mounting swivel bracket
- IP44
Downloads
Specifications
- All images and text, © Copyright City Electrical Factors Ltd
- All images and text, © Copyright City Electrical Factors Ltd
- Cable Colour
- Black
- Cable Length
- 8m
- Charging Power
- 22kW
- Colour
- Grey
- Current Rating
- 32A
- Diameter
- 380mm
- Dimensions
- (L)8 m x (Dia)380 mm
- Fused
- No
- Guarantee
- 1 Year
- IP Rating
- IP44
- Lead Type
- Type 2 to Type 2
- Length
- 8m
- Mounting
- Ceiling / Floor / Wall
- Packaging Types
- Each
- Plug Type
- Type2
- Retractable
- Yes
- Unspsc V18
- 39121440
- Unspsc V24
- 39121440
- Voltage Rating
- 415V
- Weight
- 15.36000kg
- kW Rating
- 22kW
