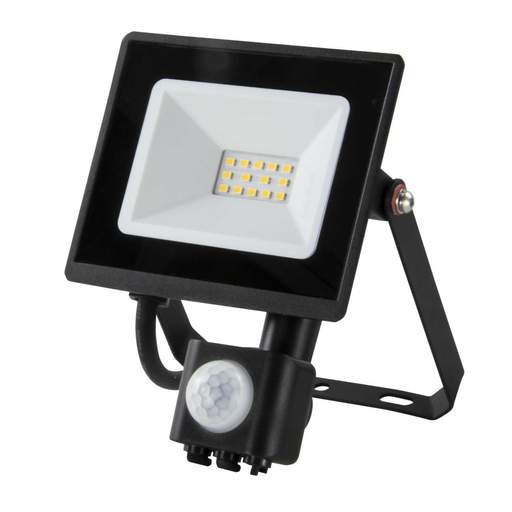

Fusion Protector 10W LED Floodlight with PIR 4000K
Part Code: FPF10PIR
Stock Code: 2722-2670
Fusion Protector 10W LED Floodlight with PIR 4000K
Part Code: FPF10PIR
Stock Code: 2722-2670
Features
- Built-in IP65 PIR sensor [manual override]
- 800lm [useful] 1000lm [total]
- Mounting height: 1.8 - 2.5m
- Pre-wired with 1m cable
- Can be installed without removing the bracket
Downloads
Specifications
- All images and text, © Copyright City Electrical Factors Ltd
- All images and text, © Copyright City Electrical Factors Ltd
- Brand
- Fusion
- Beam Angle
- 120°
- Cable Length
- 1m
- Class Type
- Class 1
- Colour
- Black
- Colour Rendering Index(Cri)
- 80
- Colour Temperature
- 4000 K
- Compliance
- UKCA, CE
- Depth
- 56mm
- Detection Angle
- 120°
- Detection Range
- 10m
- Dimensions
- (H)158 mm x (W)127 mm x (D)56 mm
- Dimmable
- No
- Energy Saving
- Yes
- Finish
- Powder Coated
- Guarantee
- 3 Years
- Height
- 158mm
- IP Rating
- IP65
- Ik Rating
- IK07
- Lamp Life
- 25000h
- Lamp Type
- Integrated LED
- Lens Colour
- Clear
- Light Source Energy Rating
- F
- Lumens Output
- 1000lm
- Lux Adjustment
- Yes
- Material
- Die-Cast Aluminium
- Mounting
- Surface
- Operating Temperature Range
- -20 - 40°C
- Packaging Types
- Box
- Power Rating
- 10W
- Product Range
- Protector
- Sensor
- PIR
- Supplied With
- 1m of Pre-Wired Cable and Mounting Bracket
- Timer Adjustment
- 3 secs - 8 mins
- Unspsc V18
- 39111611
- Unspsc V24
- 39111611
- Voltage Rating
- 230V
- Weight
- 0.24000kg
- Width
- 127mm
