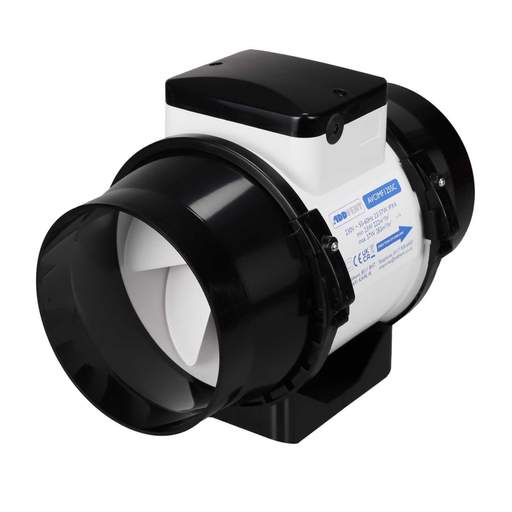

Addvent 125mm 5" In-Duct Compact Mixed Flow Timer Fan
Part Code: AVCIMF125TC
Stock Code: 2723-4025
Addvent 125mm 5" In-Duct Compact Mixed Flow Timer Fan
Part Code: AVCIMF125TC
Stock Code: 2723-4025
Features
- Compact low profile design
- Designed for applications that require high air flows with low relative noise
- Part F Compliant
- Mountable in a variety of applications and positions
- For use with either rigid or flexible ducting
- High quality ball bearing, long life motors and continuously rated
- 2 speed settings
- Easy installation and maintenance with removable central section
- Timer adjustable from 2 to 30 minutes
Specifications
- All images and text, © Copyright City Electrical Factors Ltd
- All images and text, © Copyright City Electrical Factors Ltd
- Brand
- Addvent
- Airflow Cubic Metresper Hour
- 222 / 283 m³/h
- Airflow Litresper Second
- 62 / 79 l/s
- Colour
- White/Black
- Compliance
- UKCA, CE
- Decibel Rating
- 28 / 37 dB[A] @ 3 m
- Dimensions
- (L)246 mm x (H)190 mm x (W)167 mm
- Ducting Size
- 125mm
- Guarantee
- 5 Years
- Height
- 190mm
- IP Rating
- IPX4
- Insulation Class
- Class II
- Length
- 246mm
- Material
- Low-Flammable Polypropylene
- Maximum Operating Temperature
- 40°C
- Motor Type
- 2 Speed German AC Ball Bearing Motor
- Mounting
- In-Duct
- Number of Speeds
- 2
- Operation Type
- Timer
- Packaging Types
- Each
- Power Rating
- 23W 37W
- Product Range
- Mixed Flow
- Timer Range
- 2 -30
- Type
- Mixed Flow
- Unspsc V18
- 40101502
- Unspsc V24
- 40101502
- Voltage Rating
- 230V
- Weight
- 1.75000kg
- Width
- 167mm
- Zone Rating
- Zone U
