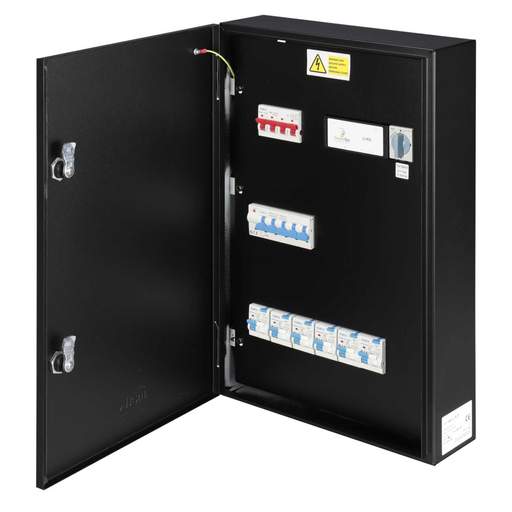

Matt:e ARD 3 Phase O-PEN EV Connection Unit with 6 x 32A DP Type A RCBOs
Part Code: ARD-6-32-R
Stock Code: 2727-8275
Matt:e ARD 3 Phase O-PEN EV Connection Unit with 6 x 32A DP Type A RCBOs
Part Code: ARD-6-32-R
Stock Code: 2727-8275
Features
- ARD connection centres incorporate the unique 5 pole auto reset device that automatically restores power to the load once the fault has cleared
- Built in O-PEN technology
- Helps reduce disruptive and costly groundworks [removes the risk of striking buried services]
- Designed for 6 x 32A single phase loads
- 6 x 32A double pole Type A RCBOs
- No earth electrodes required
- Phase loss protection
- Simple wire in wire out connection
- Standard mild steel IP4X enclosure
- Standard 1 year parts warranty
- Designed and built in the UK
Downloads
Specifications
- All images and text, © Copyright City Electrical Factors Ltd
- All images and text, © Copyright City Electrical Factors Ltd
- Colour
- Black
- Current Rating
- 32A
- Depth
- 120mm
- Dimensions
- (H)550 mm x (W)360 mm x (D)120 mm
- Finish
- Powder Coated
- Frequency
- 50 Hz
- Guarantee
- 1 Year
- Height
- 550mm
- IP Rating
- IP4X
- Material
- Mild Steel
- Mounting
- Wall
- Number of Chargepoints
- 6
- Number of Ways
- 6
- Ocpp Compliant
- No
- Ozev Approval
- No
- Packaging Types
- Each
- Pen Fault Protection
- Yes
- Unspsc V18
- 39121110
- Unspsc V24
- 39121110
- Voltage Rating
- 415V
- Weight
- 7.00000kg
- Width
- 360mm
