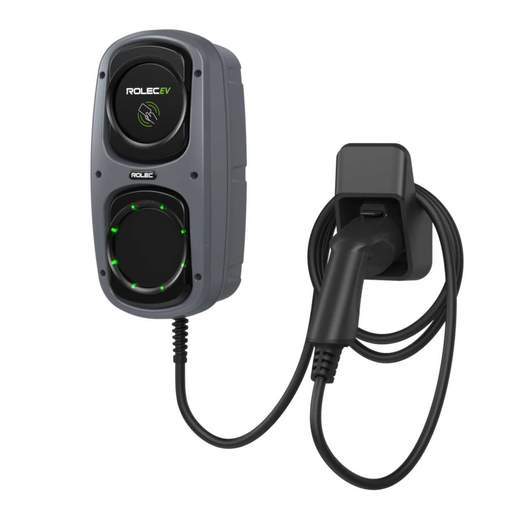

Rolec EV WallPod Smart EV Charger 7.4kW 1 x Type 2 10m Tethered Lead Grey
Part Code: ROLEC4145G
Stock Code: 2728-2982
Rolec EV WallPod Smart EV Charger 7.4kW 1 x Type 2 10m Tethered Lead Grey
Part Code: ROLEC4145G
Stock Code: 2728-2982
Features
- Finance options available - We offer a range of finance options to help you get set up in a way that suits you. Explore your options with our finance calculator [https://www.cef.co.uk/blogs/ev-charging-that-fits-real-world-budgets]
- The Wallpod is an affordable and reliable EV charging unit, which is ideal for both domestic and commercial locations, providing up to 7.4kW fast charging
- Plug and charge, mobile app or RFID controlled charging
- PME, overcurrent and DC 6mA protection
- AC overload and fault current protection - a dedicated 30mA Type A RCBO or equivalent protection is required at source [not supplied]
- Dynamic load balancing [CT clamp and cable included]
- OCPP 1.6 - can integrate with any app/back office such as ev.energy, VendElectric, Monta, Electric Miles, Fuuse etc
- Built-in MID approved energy metering
- Solar PV, battery storage or domestic wind turbine integration
- UK Smart Charge Point Regulations compliant including dual tamper and breach security notifications
- Please check the latest EV chargepoint model list on the government website for OZEV grant eligibility
Specifications
- All images and text, © Copyright City Electrical Factors Ltd
- All images and text, © Copyright City Electrical Factors Ltd
- Cable Length
- 10m
- Charging Access
- Free to Use / App / RFID
- Charging Mode
- 3
- Charging Power
- 7.4kW
- Colour
- Grey
- Compliance
- Manufactured in Compliance with BS7671 Wiring Regulations
- Connectivity
- 4G Bluetooth Ethernet Wi-Fi
- Current Rating
- 32A
- Depth
- 142mm
- Dimensions
- (H)367 mm x (W)179 mm x (D)142 mm
- Dynamic Load Managemen
- Yes
- Ev Type
- IEC 62196 (Type 2)
- Frequency
- 50/60 Hz
- Guarantee
- 3 Years
- Height
- 367mm
- IP Rating
- IP54
- Ik Rating
- IK10
- Lockable
- Yes
- Material
- High impact resistant Polycarbonate
- Metered
- Yes
- Mounting
- Wall / Pole [Sold Separately]
- Number of Chargepoints
- 1
- Number of Ways
- 1
- Ocpp Compliant
- OCPP 1.6
- off Peak Charging
- Yes
- Operating Temperature Range
- -30 - 50°C
- Output Type
- Type 2 Tethered Lead
- Ozev Approval
- WCS
- Packaging Types
- Each
- Pen Fault Protection
- Yes
- Product Range
- Wallpod Intelligent
- Status Indicator
- LED
- Suitable For
- Home / Workplace
- Type
- Mode 3
- Unspsc V18
- 25175002
- Unspsc V24
- 25175002
- Voltage Rating
- 230V
- Weight
- 3.98000kg
- Width
- 179mm
- kW Rating
- 7.4kW
