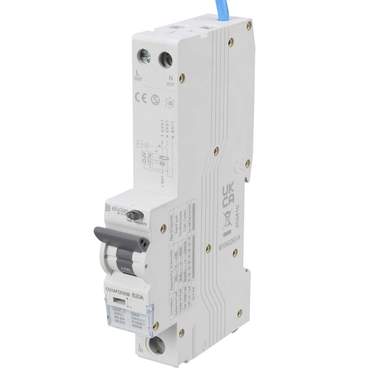

Scolmore Click Elucian 16A 1P+SN 1 Module B Curve 6kA 30mA Type A AFDD Combined RCBO
Part Code: CU1AFDD16B
Stock Code: 2744-0431
Scolmore Click Elucian 16A 1P+SN 1 Module B Curve 6kA 30mA Type A AFDD Combined RCBO
Part Code: CU1AFDD16B
Stock Code: 2744-0431
Features
- Combined AFDD RCBO with switched neutral
- B curve Type A with true 6kA short circuit rating
- Used for the protection against Arc Faults [Series and Parallel] overload, short circuit and earth leakage
Downloads
Specifications
- All images and text, © Copyright City Electrical Factors Ltd
- All images and text, © Copyright City Electrical Factors Ltd
- Current Rating
- 16A
- Depth
- 76.6mm
- Dimensions
- (H)117 mm x (W)17.8 mm x (D)76.6 mm
- Guarantee
- 3 Years
- Height
- 117mm
- Incoming Terminal Capacity
- Flexible 25mm² Rigid 32mm²
- Mounting
- DIN Rail
- Number of Modules
- 1
- Number of Poles
- Single Pole & Neutral [Switched]
- Outgoing Terminal Capacity
- Flexible 16mm² Rigid 25mm²
- Packaging Types
- Each
- Product Range
- Elucian
- Rcd Type
- A
- Short Circuit Rating
- 6kA
- Standards
- BS EN 61009-1
- Tripping Characteristics
- B Curve
- Tripping Sensitivity
- 30mA
- Unspsc V18
- 39121601
- Unspsc V24
- 39121601
- Voltage Rating
- 240V
- Weight
- 0.16465kg
- Width
- 17.8mm
