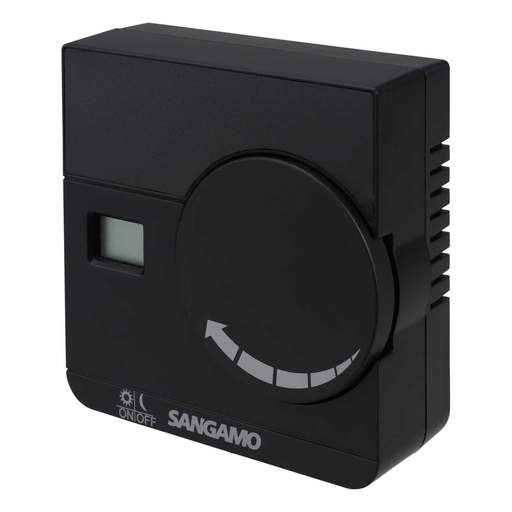

Sangamo Electronic Digital Room Thermostat Black
Part Code: CHPRSTATDB
Stock Code: 2744-4040
Sangamo Electronic Digital Room Thermostat Black
Part Code: CHPRSTATDB
Stock Code: 2744-4040
Features
- Large dial with digital display
- Electronic sensor for accurate and responsive performance
- TPI [time proportional and integral] control for heating efficiency
- Comfort/economy or on/off modes
- Battery powered with low indication status [batteries supplied]
- 5°C to 30°C set temperature range
- 0.5°C and 1°C temperature swing adjustment
- 5°C frost protection
- 3A contact rating [volt free]
- Energy efficiency ERP class 4, 2% value
Downloads
Specifications
- All images and text, © Copyright City Electrical Factors Ltd
- All images and text, © Copyright City Electrical Factors Ltd
- Battery Size
- AA
- Battery Type
- Alkaline
- Change Over Contacts
- No
- Colour
- Black
- Compliance
- CE
- Current Rating
- 3A
- Current Rating Inductive
- 1A
- Depth
- 38mm
- Dimensions
- (H)88 mm x (W)86 mm x (D)38 mm
- Display Type
- LCD
- Finish
- Black
- Guarantee
- 3 Years
- Height
- 88mm
- Maximum Operating Temperature
- 50°C
- Minimum Operating Temperature
- 0°C
- Mounting
- Wall
- Packaging Types
- Each
- Standards
- EN 60730-1, EN 60730-2-9, EMC Directive 2004/108/EC, LVD Directive 2006/95/EC
- Tamper Proof
- No
- Temperature Range
- 5 - 30°C
- Unspsc V18
- 39122229
- Unspsc V24
- 39122229
- Voltage Free Contacts
- Yes
- Weight
- 0.22kg
- Width
- 86mm
- Wireless
- No
