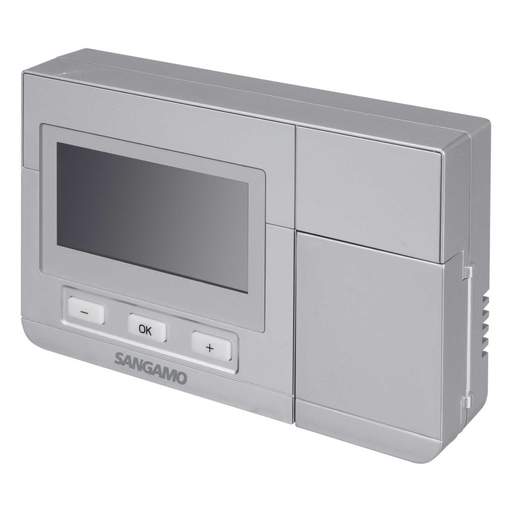

Sangamo Wireless Programmable Thermostat with Digital Display Silver
Part Code: CHPRSTATDPRFS
Stock Code: 2744-4907
Sangamo Wireless Programmable Thermostat with Digital Display Silver
Part Code: CHPRSTATDPRFS
Stock Code: 2744-4907
Features
- Wireless communication between thermostat and receiver
- 24 hour or 7 day programmable
- 6 time/temperature events per day
- Permanent, timed and temporary override features
- Pre-programmed schedule ready for use
- Electronic sensor for accurate and responsive performance
- TPI [time proportional and integral] control for heating efficiency
- Optimum start/delay start and optimum stop for additional efficiency
- Summer/winter time change
- 5°C to 35°C set temperature range
- 0.5°C and 1°C temperature swing adjustment
- 5°C frost protection
- Transmission frequency: 868MHz [80m open field, 30m indoor transmission]
- Receiver 16A switch rating 230V AC
- Energy efficiency; ERP Class 4, 2% value
Downloads
Specifications
- All images and text, © Copyright City Electrical Factors Ltd
- All images and text, © Copyright City Electrical Factors Ltd
- Battery Size
- AA
- Change Over Contacts
- No
- Colour
- Silver
- Compliance
- CE
- Current Rating
- 16A
- Current Rating Inductive
- 3A
- Depth
- 32.1mm
- Dimensions
- (H)88.6 mm x (W)140 mm x (D)32.1 mm
- Display Type
- LCD
- Finish
- Silver
- Guarantee
- 3 Years
- Height
- 88.6mm
- Maximum Operating Temperature
- 50°C
- Minimum Operating Temperature
- 0°C
- Mounting
- Wall
- Number of Batteries
- 4
- Packaging Types
- Each
- Standards
- EN 60730-1, EN 60730-2-9, EMC Directive 2004/108/EC, LVD Directive 2006/95/EC
- Tamper Proof
- No
- Temperature Range
- 5 - 35°C
- Unspsc V18
- 39122229
- Unspsc V24
- 39122229
- Voltage Free Contacts
- Yes
- Voltage Rating
- 230V
- Weight
- 0.53kg
- Width
- 140mm
- Wireless
- Yes
