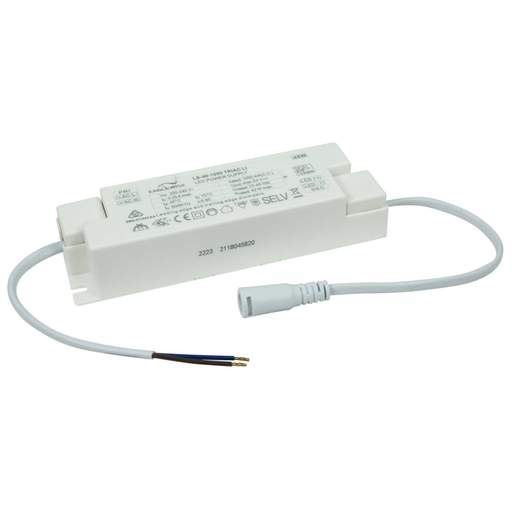

Fusion Triac Dimmable LED Driver for FP126 LED Panels
Part Code: FP126TDD
Stock Code: 2744-4979
Fusion Triac Dimmable LED Driver for FP126 LED Panels
Part Code: FP126TDD
Stock Code: 2744-4979
Features
- 40W constant current LED driver
- Class II, SELV, independent
- Input voltage 220-240VAC
- Protections: SCP/OLP/OVP
- Power Factor 0.95±0.05
- Efficiency ≥87%
- Support Leading edge and trailing edge dimmable
- Suitable for use with 'FP126' 1200mm x 600mm LED panels
- 5 years warranty
Downloads
Specifications
- All images and text, © Copyright City Electrical Factors Ltd
- All images and text, © Copyright City Electrical Factors Ltd
- Brand
- Fusion
- Class Type
- Class 2
- Colour
- White
- Compliance
- UKCA, CE, RoHS
- Depth
- 30mm
- Dimensions
- (L)150 mm x (W)44 mm x (D)30 mm
- Dimmable
- Yes
- Guarantee
- 5 Years
- IP Rating
- IP20
- Length
- 150mm
- Material
- Polycarbonate
- Maximum Operating Temperature
- +50°C
- Minimum Operating Temperature
- -20°C
- Packaging Types
- Each
- Product Range
- FP LED Panels
- Suitable For
- FP126 1200mm x 600mm LED Panels
- Unspsc V18
- 39112103
- Unspsc V24
- 39112103
- Voltage Rating
- 230V
- Weight
- 0.16500kg
- Width
- 44mm
