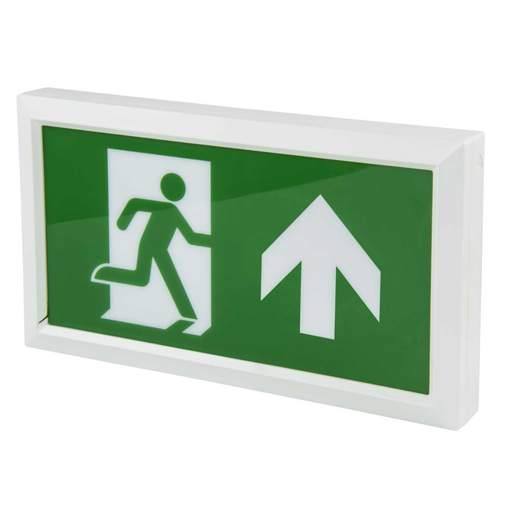

Fusion 3.5W LED Maintained Emergency Exit Box
Part Code: FE3EB
Stock Code: 2745-0358
Fusion 3.5W LED Maintained Emergency Exit Box
Part Code: FE3EB
Stock Code: 2745-0358
Features
- Suitable for maintained / non-maintained operation [dual technology]
- Emergency duration [3hrs / 180mins]
- Supplied with up legend
- Polycarbonate body and diffuser
- Alternative legends available
Downloads
Specifications
- All images and text, © Copyright City Electrical Factors Ltd
- All images and text, © Copyright City Electrical Factors Ltd
- Brand
- Fusion
- Battery Type
- Lithium Iron Phosphate (LiFePO4)
- Cable Entry
- 20mm
- Class Type
- Class 1
- Colour
- Green/White
- Colour Temperature
- 6500 K
- Compliance
- UKCA, CE
- Depth
- 39mm
- Dimensions
- (H)185 mm x (W)330 mm x (D)39 mm
- Emergency
- Yes
- Emergency Duration
- 3 Hours
- Emergency Type
- Maintained
- Energy Saving
- Yes
- Finish
- Green/White
- Guarantee
- 2 Years
- Height
- 185mm
- IP Rating
- IP20
- Lamp Life
- 30000h
- Lamp Type
- Integrated LED
- Legend
- Exit Arrow Up
- Lumens Output
- 20lm 35lm
- Material
- Polycarbonate
- Mounting
- Surface
- Operating Temperature Range
- 0 - 40°C
- Packaging Types
- Box
- Power Rating
- 3.5W
- Suitable For
- Indoor use
- Test Button
- Yes
- Type
- Standard
- Unspsc V18
- 39111708
- Unspsc V24
- 39111708
- Voltage Rating
- 230V
- Weight
- 0.80000kg
- Width
- 330mm
