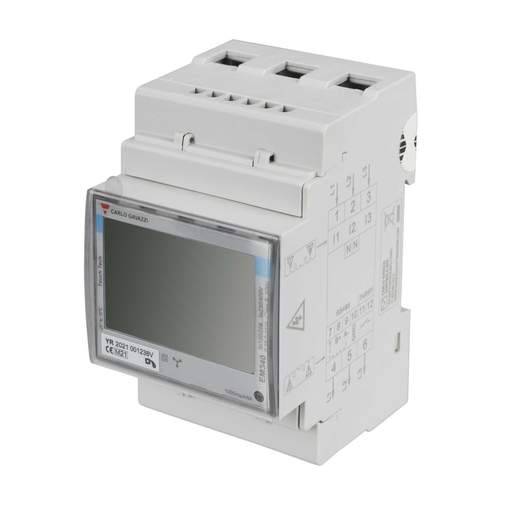

Wallbox 65A 3 Phase Energy Analyzer
Part Code: MTR-3P-65A
Stock Code: 2746-2760
Wallbox 65A 3 Phase Energy Analyzer
Part Code: MTR-3P-65A
Stock Code: 2746-2760
Features
- Single phase energy analyzer
- Direct current measurement up to 65A AC
- Backlit LCD display with integrated touch keypad
- Energy measurement: kWh and kVArh
- 3 DIN module
- Pulse output
- Digital input [for tariff management]
- Easy connection or wrong current direction detection
- IP51
Downloads
Specifications
- All images and text, © Copyright City Electrical Factors Ltd
- All images and text, © Copyright City Electrical Factors Ltd
- Current Rating
- 65A
- Depth
- 63mm
- Dimensions
- (H)90 mm x (W)53.8 mm x (D)63 mm
- Frequency
- 50/60 Hz
- Guarantee
- 3 Years
- Height
- 90mm
- Mounting
- DIN Rail
- Packaging Types
- Each
- Unspsc V18
- 39121106
- Unspsc V24
- 39121106
- Voltage Rating
- 415V
- Weight
- 0.35kg
- Width
- 53.8mm
