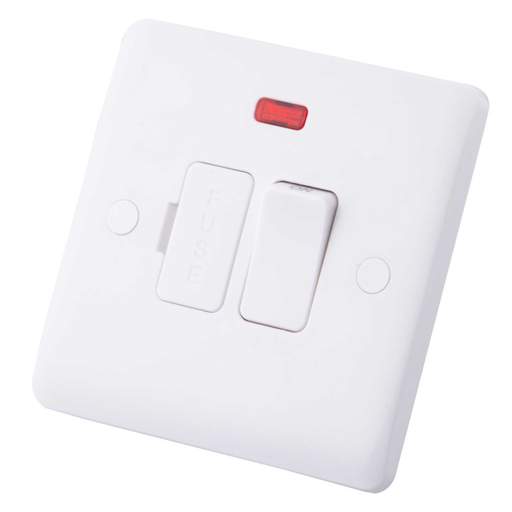

M2 Slimline 13A DP Switched Fused Spur with Neon and Flex Outlet White
Part Code: 1010-047
Stock Code: 2748-6775
M2 Slimline 13A DP Switched Fused Spur with Neon and Flex Outlet White
Part Code: 1010-047
Stock Code: 2748-6775
Features
- Double pole switch
- 13A fuse fitted as standard
- Optional bottom edge cable clamp
- Neon indicator and flex outlet
- Curved profile face plate with curved rocker
- Complete with fixing screws and screw caps
Downloads
Specifications
- All images and text, © Copyright City Electrical Factors Ltd
- All images and text, © Copyright City Electrical Factors Ltd
- Brand
- M2
- Cable Clamp
- Yes
- Cable Entry
- Bottom Edge
- Cable Outlet
- Yes
- Colour
- White
- Compliance
- CE Compliant 93/68/EEC
- Current Rating
- 13A
- Dimensions
- (H)86 mm x (W)86 mm
- Fixing Centres
- 60.3mm
- Fuse Fitted
- Yes
- Guarantee
- 25 Years
- Height
- 86mm
- Material
- Thermoset Urea
- Mounting
- Wall
- Mounting Depth
- 25mm
- Neon
- Yes
- Number of Gangs
- 1
- Number of Poles
- Double Pole
- Packaging Types
- Each
- Product Range
- M2 slimline
- Standards
- BS 1363
- Switched Unswitched
- Switched
- Unspsc V18
- 39121704
- Unspsc V24
- 39121704
- Voltage Rating
- 230V
- Weight
- 0.11700kg
- Width
- 86mm
