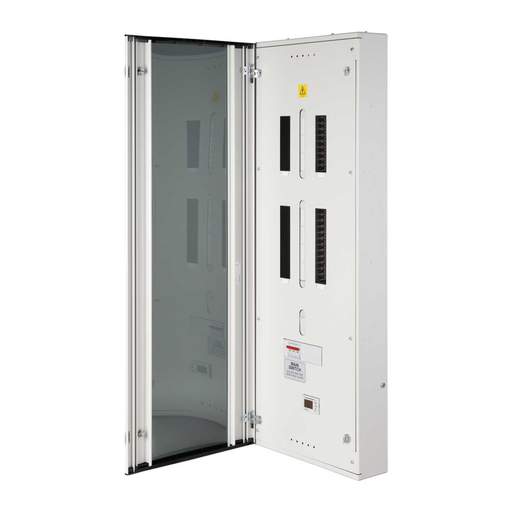

Hager 8+6 Way Dual Metered TP+N Power and Lighting Board with 125A Incomer
Part Code: JKD186TM
Stock Code: 2749-3300
Hager 8+6 Way Dual Metered TP+N Power and Lighting Board with 125A Incomer
Part Code: JKD186TM
Stock Code: 2749-3300
Features
- Distribution boards conforming to BS EN 61439-3 , with split metered sections to separately monitor small power and lighting circuits
- Complete with a factory fitted 125A TP switch disconnector, MID approved energy meter and CT’s
- Suitable for tenant billing if required
Downloads
Specifications
- All images and text, © Copyright City Electrical Factors Ltd
- All images and text, © Copyright City Electrical Factors Ltd
- Cable Entry
- Top and bottom
- Current Rating
- 125A
- Depth
- 165.5mm
- Dimensions
- (H)1250 mm x (W)465 mm x (D)165.5 mm
- Door Type
- Glazed Door
- Guarantee
- 2 Years
- Height
- 1250mm
- IP Rating
- IP3X
- Incoming Device
- 125A TP Isolator
- Incoming Terminal Capacity
- 50mm² Incoming Terminals - Earth M8 Stud
- Material
- Steel
- Mounting
- Surface
- Number of Outgoing Ways
- 8 6
- Packaging Types
- Each
- Product Range
- Invicta 3
- Standards
- BS EN 61439-3
- Type
- Distribution Board
- Unspsc V18
- 39121110
- Unspsc V24
- 39121110
- Voltage Rating
- 230V 400V
- Weight
- 24.8kg
- Width
- 465mm
