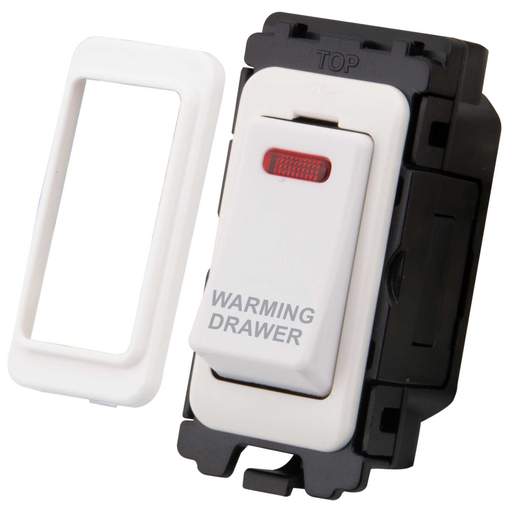

M2 Grid 20A Double Pole Grid Switch with Neon marked Warming Drawer
Part Code: 3011-051WR
Stock Code: 2749-5745
M2 Grid 20A Double Pole Grid Switch with Neon marked Warming Drawer
Part Code: 3011-051WR
Stock Code: 2749-5745
Features
- 20A Rated
- Double pole switch with neon
- Engraved: Warming Drawer
- For use with M2 grid plates
Specifications
- All images and text, © Copyright City Electrical Factors Ltd
- All images and text, © Copyright City Electrical Factors Ltd
- Brand
- M2
- Colour
- White
- Compliance
- CE Compliant 93/68/EEC
- Current Rating
- 20A
- Depth
- 29mm
- Dimensions
- (H)55 mm x (W)25 mm x (D)29 mm
- Finish
- White
- Guarantee
- 25 Years
- Height
- 55mm
- Insert Colours
- White
- Legend
- Warming Drawer
- Material
- Thermoset Urea
- Mounting
- Grid
- Neon
- Yes
- Number of Modules
- 1
- Number of Poles
- Double Pole
- Packaging Types
- Each
- Product Range
- M2 grid
- Standards
- BS EN 60669
- Suitable For
- M2 grid Plates
- Supplied With
- M2 slimline & M2 metal trim
- Terminal Capacity Earth
- 3 x 2.5 mm², 2 x 4 mm², 1 x 6 mm²
- Terminal Capacity Live Neutral
- 3 x 2.5 mm², 2 x 4 mm², 1 x 6 mm²
- Unspsc V18
- 39122226
- Unspsc V24
- 39122226
- Voltage Rating
- 230V
- Weight
- 0.02200kg
- Width
- 25mm
