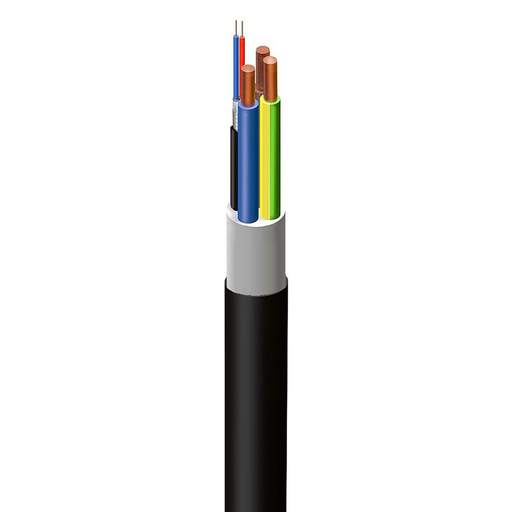

6mm² 3 Core + 1 Pair Screened LSZH EV Cable Black (Cut Length Sold By The Metre)
Part Code: EV3X6-1PR
Stock Code: 2750-4493
6mm² 3 Core + 1 Pair Screened LSZH EV Cable Black (Cut Length Sold By The Metre)
Part Code: EV3X6-1PR
Stock Code: 2750-4493
Features
- The cable is a combination of power cores and 1 pair screened data cable
- Flexible enough to be used in confined areas for ease of termination
- Manufactured from low smoke and fume materials
Downloads
Specifications
- All images and text, © Copyright City Electrical Factors Ltd
- All images and text, © Copyright City Electrical Factors Ltd
- Armour Type
- Non_Armoured
- Colour
- Black
- Core Colours
- Blue, Brown, and Green/Yellow
- Cross Sectional Area
- 6mm²
- Diameter
- 14.4mm
- Dimensions
- (Dia)14.4 mm
- Number of Cores
- 3
- Packaging Types
- Metre
- Previously Known As
- EV2PR3X6LSZH
- Product Range
- Ascent
- Sheath
- LSZH
- Standards
- IEC 60228, IEC60754-1, IEC 60502-1, IEC61034-2, IEC 60332-1-2, IEC60332-3-24, IEC 61158-5
- Unspsc V18
- 26121629
- Unspsc V24
- 26121629
- Voltage Rating
- 600V 1000V
- Weight
- 0.42600kg
