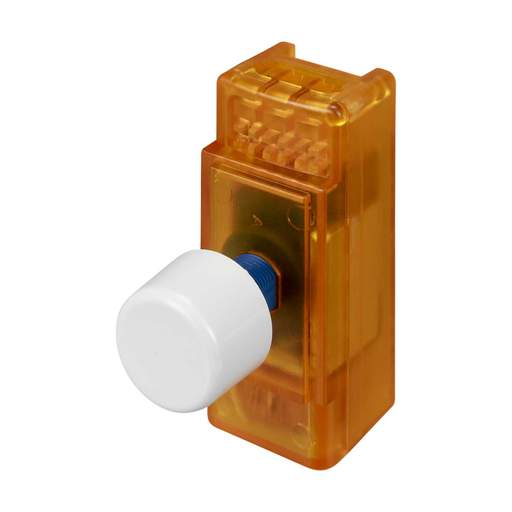

Aurora Lighting 400VA 1 Gang 2 Way Rotary Dimmer
Part Code: EN-DSP400X
Stock Code: 1164-5302
Aurora Lighting 400VA 1 Gang 2 Way Rotary Dimmer
Part Code: EN-DSP400X
Stock Code: 1164-5302
Features
- Leading edge
- For use with resistive and inductive loads
- Suitable for control of dimmable compact fluorescent and LED lamps
- Dimmable electronic transformers, LED drivers, toroidal transformers and tungsten lamps
- Integrated trimming potentiometer
- Allows CFL and LED lamps to be set at a minimum level
- Prevents them going out or flickering at the bottom of the dimmer range
- Integrated over-temperature protection fuse
- Module case ultrasonically sealed to reduce dimmer buzzing
- Smooth dimming operation from 0-100% light output
- De-rate dimmer by 70% for LED loads
Downloads
Specifications
- All images and text, © Copyright City Electrical Factors Ltd
- All images and text, © Copyright City Electrical Factors Ltd
- Compliance
- EMC compliance - EN 55015
- Depth
- 25mm
- Dimensions
- (H)62 mm x (W)26 mm x (D)25 mm
- Guarantee
- 1 Year
- Height
- 62mm
- Mounting
- Wall
- Number of Gangs
- 1
- Number of Ways
- 2
- Operation Type
- Push On / Off
- Packaging Types
- Each
- Power Rating
- 400W
- Standards
- EN 60669-2-1
- Unspsc V18
- 39122206
- Unspsc V24
- 39122206
- Voltage Rating
- 230V
- Weight
- 0.05400kg
- Width
- 26mm
