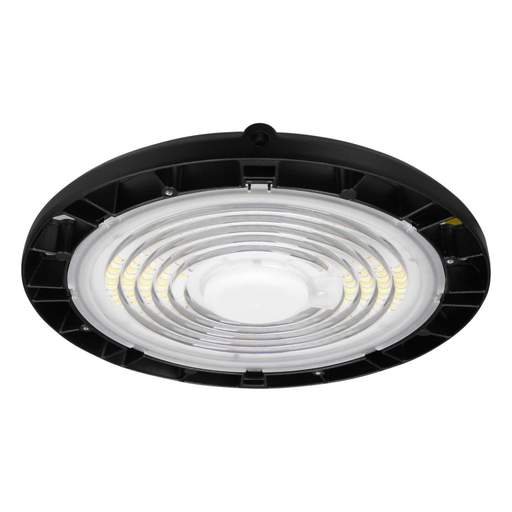

Ovia Inceptor Hi-Lite 100W LED Tri-Colour 1-10V Dimmable High Bay
Part Code: OXHL100
Stock Code: 2753-4835
Ovia Inceptor Hi-Lite 100W LED Tri-Colour 1-10V Dimmable High Bay
Part Code: OXHL100
Stock Code: 2753-4835
Features
- Colour selectable via CTA switch [4000K / 5000K / 6500K]
- Lumen outputs: 15500lm [4000K], 16500lm [5000K], 15000lm [6500K]
- 1-10V dimmable
- IP65 rated
- Supplied with suspension point within moulding
- Bracket 'OVWB1080' available [sold separately]
Downloads
Specifications
- All images and text, © Copyright City Electrical Factors Ltd
- All images and text, © Copyright City Electrical Factors Ltd
- Beam Angle
- 90°
- Class Type
- Class 1
- Colour
- Black
- Colour Rendering Index(Cri)
- 80
- Colour Temperature
- Selectable - 4000/5000/6500 K
- Compliance
- UKCA, CE
- Diameter
- 262mm
- Dimensions
- (Dia)262 mm x (H)104 mm
- Dimmable
- Yes
- Emergency
- No
- Energy Saving
- Yes
- Finish
- Black [RAL 9005]
- Guarantee
- 6 Years
- Height
- 104mm
- IP Rating
- IP65
- Ik Rating
- IK10
- Lamp Life
- 50000h
- Lamp Type
- Integrated LED
- Lens Colour
- Clear
- Light Source Energy Rating
- D
- Lumens Output
- 15500lm 16500lm 15000lm
- Material
- Aluminium / Polycarbonate
- Mounting
- Suspended
- Operating Temperature Range
- -40 - +50°C
- Packaging Types
- Each
- Power Rating
- 100W
- Product Range
- Inceptor Hi-Lite
- Sensor
- No
- Unspsc V18
- 39111546
- Unspsc V24
- 39111546
- Voltage Rating
- 230V
- Weight
- 2.10000kg
