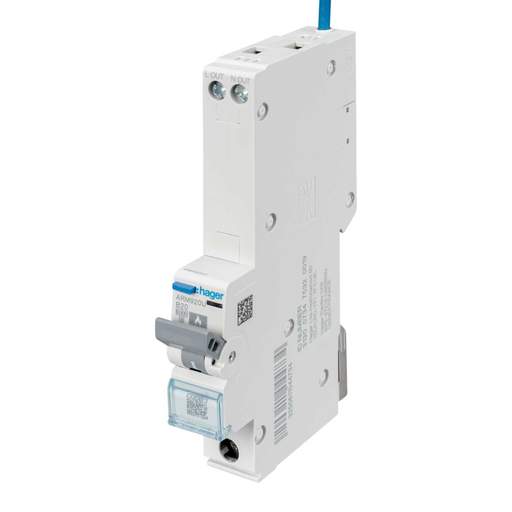

Hager 20A 1P+N 1 Module B Curve 6kA MCB with Type A AFDD
Part Code: ARM920U
Stock Code: 2754-1627
Hager 20A 1P+N 1 Module B Curve 6kA MCB with Type A AFDD
Part Code: ARM920U
Stock Code: 2754-1627
Features
- Protection device which combines an MCB with an Arc Fault Detection Device
- B curve
- Complies with BS EN 62606
- AFDDs all come with advanced ProTools diagnostic software as standard
- For use with Hager VML, VM , VMLF and VSR consumer unit ranges [sold separately]
Downloads
Specifications
- All images and text, © Copyright City Electrical Factors Ltd
- All images and text, © Copyright City Electrical Factors Ltd
- Current Rating
- 20A
- Depth
- 70mm
- Dimensions
- (H)125 mm x (W)17.5 mm x (D)70 mm
- Guarantee
- 2 Years
- Height
- 125mm
- Mounting
- DIN Rail
- Number of Modules
- 1
- Number of Poles
- Single Pole and Neutral
- Packaging Types
- Each
- Rcd Type
- A
- Short Circuit Rating
- 6kA
- Standards
- EN 62606, EN 60898-1
- Tripping Characteristics
- B Curve
- Unspsc V18
- 39121602
- Unspsc V24
- 39121603
- Voltage Rating
- 230V
- Weight
- 0.2kg
- Width
- 17.5mm
