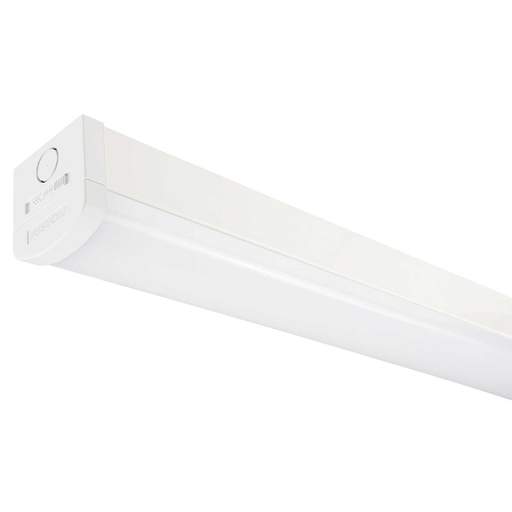

Fusion 20W 4ft LED Tri-Colour Emergency Batten Fitting

Part Code: FBAT4CCE3

Stock Code: 2756-5072

Fusion 20W 4ft LED Tri-Colour Emergency Batten Fitting

Part Code: FBAT4CCE3

Stock Code: 2756-5072

Delivery

Back in stock 18th March

Features

  • New modern design
  • Maintained emergency [3hr/180mins]
  • CCT colour select function [WW/CW/DW]
  • Quick release access system
  • Push-fit [loop-in/loop-out] terminal blocks
  • Steel body with powder coated finish
  • Polycarbonate UV stabilised diffuser
  • Supplied with safety cords to LED tray

Downloads

Specifications

All images and text, © Copyright City Electrical Factors Ltd
All images and text, © Copyright City Electrical Factors Ltd
Brand
Fusion
Beam Angle
120°
Class Type
Class 1
Colour
White
Colour Rendering Index(Cri)
80
Colour Temperature
Selectable - 3000/4000/6500 K
Compliance
UKCA, CE
Depth
72.5mm
Dimensions
(L)1200 mm x (W)72 mm x (D)72.5 mm
Dimmable
No
Emergency
Yes
Emergency Duration
3 Hours
Emergency Type
Maintained
Energy Saving
Yes
Finish
White
Fixing Centres
926mm
Guarantee
2 Years
IP Rating
IP20
Ik Rating
IK06
Lamp Life
50000h
Lamp Type
Integrated LED
Length
1200mm
Lens Colour
Opal
Lumens Output
2400lm
Material
Steel Body / Polycarbonate Diffuser
Maximum Operating Temperature
+40°C
Minimum Operating Temperature
-20°C
Mounting
Surface / Suspended
Packaging Types
Box
Power Rating
20W
Sensor
No
Unspsc V18
39111544
Video Url
https://www.youtube.com/embed/hJOKiwe-DOQ
Voltage Rating
230V
Weight
3.9kg
Width
72mm
