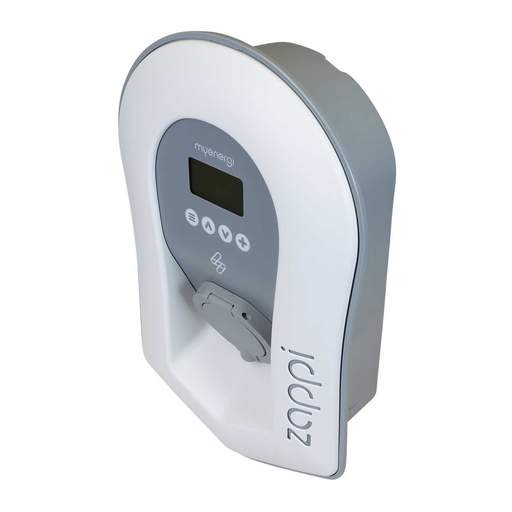

Myenergi Zappi V2.1 7kW EV Charging Station with 32A Type 2 Socket White
Part Code: ZAPPI-2H07UW-G
Stock Code: 2760-0991
Myenergi Zappi V2.1 7kW EV Charging Station with 32A Type 2 Socket White
Part Code: ZAPPI-2H07UW-G
Stock Code: 2760-0991
Features
- 7kW charging station in white
- 3 charging modes eco, eco and fast
- Optimises micro-generation self consumption
- Economy tariff sense input
- EV charging from surplus solar or wind generation
- Programmable timer function
- Charge and event logging
- Pin code lock function
- Dynamic load balancing for maximum installation flexibility
- OZEV approved
- Ethernet port and built-in Wi-Fi for connecting to the internet
- Complete with latest software and tamper protection boundary
- Please check the latest EV chargepoint model list on the government website for OZEV grant eligibility
Specifications
- All images and text, © Copyright City Electrical Factors Ltd
- All images and text, © Copyright City Electrical Factors Ltd
- Charging Access
- Free to Use
- Charging Mode
- 3
- Charging Power
- 7kW
- Colour
- White
- Compliance
- CE
- Connectivity
- Ethernet Wi-Fi
- Current Rating
- 32A
- Depth
- 122mm
- Dimensions
- (H)439 mm x (W)282 mm x (D)122 mm
- Dynamic Load Managemen
- Yes
- Ev Type
- Type 2
- Frequency
- 50 Hz
- Guarantee
- 3 Years
- Height
- 439mm
- IP Rating
- IP65
- Ik Rating
- IK10
- Lockable
- Yes
- Metered
- Yes
- Mounting
- Wall / Pedestal [Sold Separately]
- Number of Chargepoints
- 1
- Number of Ways
- 1
- Ocpp Compliant
- No
- off Peak Charging
- Yes
- Output Type
- Type 2 Socket
- Ozev Approval
- EVHS / WCS
- Packaging Types
- Each
- Pen Fault Protection
- Yes
- Previously Known As
- ZAPPI-2H07UW
- Product Range
- Zappi V2.1
- Socket Protection
- Overload, DC Sensitive and Fault Current Protected
- Standards
- LVD 2014/35/EU, EMC 2014/30/EU, EN 62196, EN 62955:2018
- Status Indicator
- LED
- Suitable For
- Home / Workplace
- Type
- Mode 3
- Unspsc V18
- 25175002
- Unspsc V24
- 25175002
- Voltage Rating
- 230V
- Weight
- 8.70000kg
- Width
- 282mm
- kW Rating
- 7kW
