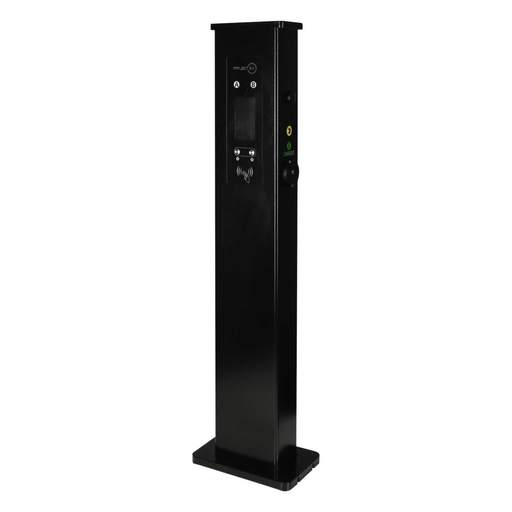

Project EV 7.3kW Pro Earth Secure AC Floor Charger with 2 x 32A Type 2 Sockets and RFID
Part Code: EVA-07D-SE-RFID
Stock Code: 2760-1837
Project EV 7.3kW Pro Earth Secure AC Floor Charger with 2 x 32A Type 2 Sockets and RFID
Part Code: EVA-07D-SE-RFID
Stock Code: 2760-1837
Features
- Single phase 63A AC pedestal charging unit with dual 32A [IEC62196-2] type 2 charging sockets
- Built in PEN fault detection [no earth electrode required]
- Time shifting capabilities for off peak energy tariffs
- Cable locking system for added security
- Free mobile monitoring app and dynamic load balancing
- Plug and charge or RFID charging modes makes charging electric vehicles easy and stress free for all
- LCD display screen and LED indicator light
- App, Ethernet and Wi-Fi monitoring
- Type A 6mA DC fault current protection
- Supplied with one RFID card as standard
- Please note each socket is 32A rated for further information please refer to the manufacturers datasheet
- Please check the latest EV chargepoint model list on the government website for OZEV grant eligibility
Downloads
Specifications
- All images and text, © Copyright City Electrical Factors Ltd
- All images and text, © Copyright City Electrical Factors Ltd
- Charging Access
- Free to Use / App / RFID
- Charging Mode
- 3
- Charging Power
- 7.3kW
- Colour
- Black/Grey
- Compliance
- CE
- Connectivity
- Ethernet Wi-Fi
- Current Rating
- 32A
- Depth
- 175mm
- Dimensions
- (H)1635 mm x (W)320 mm x (D)175 mm
- Dynamic Load Managemen
- Yes
- Ev Type
- Type 2
- Frequency
- 50/60 Hz
- Guarantee
- 5 Years
- Height
- 1635mm
- IP Rating
- IP65
- Ik Rating
- IK10
- Lockable
- Yes
- Metered
- Yes
- Mounting
- Floor
- Number of Chargepoints
- 2
- Number of Ways
- 2
- Ocpp Compliant
- OCPP 1.6
- off Peak Charging
- Yes
- Operating Temperature Range
- -25 - 50°C
- Output Type
- 2 x Type 2 Sockets
- Ozev Approval
- EVHS / WCS
- Packaging Types
- Each
- Pen Fault Protection
- Yes
- Socket Protection
- Type A 6mA DC Fault Current Protection
- Status Indicator
- LED
- Suitable For
- Home / Workplace
- Type
- Mode 3
- Unspsc V18
- 25175002
- Unspsc V24
- 25175002
- Voltage Rating
- 230V
- Weight
- 45.00000kg
- Width
- 320mm
- kW Rating
- 7.3kW
