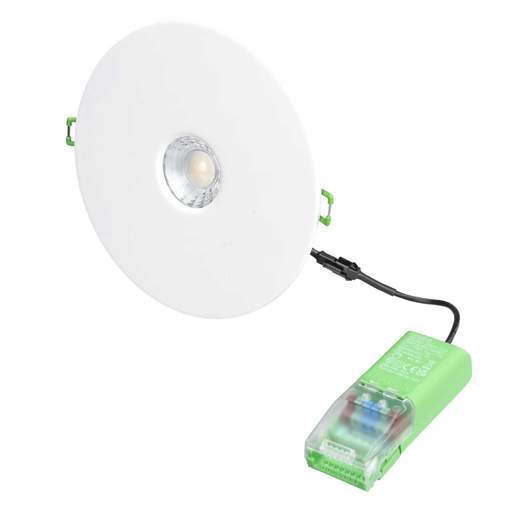

JCC V50 Pro Retrofit 6W LED Fire Rated Colour Selectable 170mm Downlight White
Part Code: JC1017/WH
Stock Code: 2763-7624
JCC V50 Pro Retrofit 6W LED Fire Rated Colour Selectable 170mm Downlight White
Part Code: JC1017/WH
Stock Code: 2763-7624
Features
- Colour selectable temperatures via switchlocated underneath the bezel [3000K and 4000K]
- Slim profile 3mm bezel with a slimline double hinged driver, including colour coded loop in/loop out terminals
- Dimmable
- Allows for retrofit where larger downlights were previously installed covers ceiling cut-outs [70 - 159mm]
- Low profile design, for installations in shallow 50mm ceiling voids
- Standard 2 year warranty, increases to 5 years domestic / 3 years commercial when registered with JCC witin 1 year of purchase
Downloads
Specifications
- All images and text, © Copyright City Electrical Factors Ltd
- All images and text, © Copyright City Electrical Factors Ltd
- Beam Angle
- 60°
- Class Type
- Class 2
- Colour
- White
- Colour Rendering Index(Cri)
- 80
- Colour Temperature
- Selectable - 3000/4000 K
- Compliance
- UKCA, CE
- Cut Out Range
- 70 - 159mm
- Depth
- 54mm
- Diameter
- 170mm
- Dimensions
- (Dia)170 mm x (D)54 mm
- Dimmable
- Yes
- Energy Saving
- Yes
- Finish
- White
- Fire Rated
- Yes
- Guarantee
- 2 Years
- IP Rating
- IP65
- Lamp Life
- 51000h
- Lamp Type
- Integrated LED
- Light Source Energy Rating
- F
- Lumens Output
- 600lm 650lm
- Material
- Polycarbonate / Steel
- Mounting
- Recessed
- Packaging Types
- Each
- Power Rating
- 6W
- Product Range
- V50
- Standards
- BS EN 60598
- Unspsc V18
- 39111515
- Unspsc V24
- 39111515
- Voltage Rating
- 230V
- Weight
- 0.473kg
