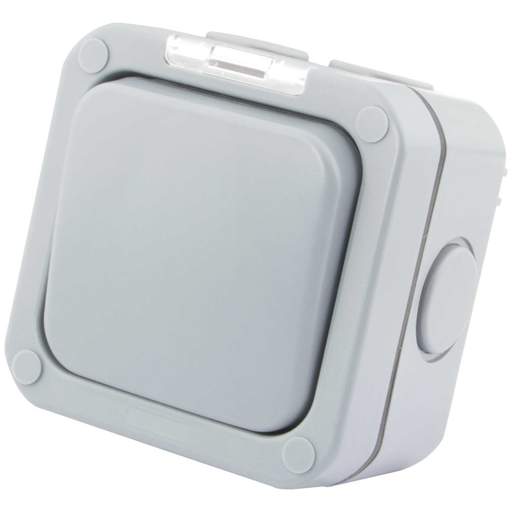

M2 Weatherproof 20A 1 Gang 2 Way Switch IP66
Part Code: 5090-002
Stock Code: 2764-4602
M2 Weatherproof 20A 1 Gang 2 Way Switch IP66
Part Code: 5090-002
Stock Code: 2764-4602
Features
- 20A Switch rating
- IP66 protection from strong jets of water from any direction
- Protection from dust and small particles
- Optional neon provided
- Robust polycarbonate construction
- 20mm knockouts on all sides
- Two knockouts on one side
Specifications
- All images and text, © Copyright City Electrical Factors Ltd
- All images and text, © Copyright City Electrical Factors Ltd
- Brand
- M2
- Cable Entry
- 5 x 20mm Knockouts
- Colour
- Grey
- Compliance
- CE Compliant 93/68/EEC
- Current Rating
- 20A
- Depth
- 68mm
- Dimensions
- (H)90 mm x (W)90 mm x (D)68 mm
- Guarantee
- 25 Years
- Height
- 90mm
- IP Rating
- IP66
- Material
- Polycarbonate
- Mounting
- Surface
- Neon
- Yes
- Number of Gangs
- 1
- Packaging Types
- Each
- Previously Known As
- 5080-002
- Product Range
- Polycarbonate
- Standards
- BS EN 60670;BS EN 60669
- Terminal Capacity Earth
- 3 x 2.5mm²
- Unspsc V18
- 39122226
- Unspsc V24
- 39122226
- Voltage Rating
- 230V
- Weight
- 0.25500kg
- Width
- 90mm
