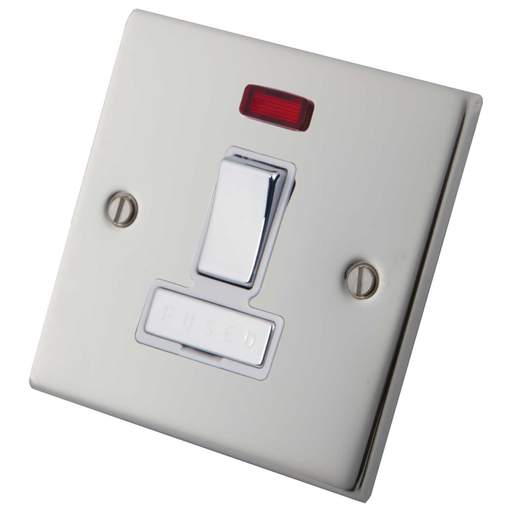

M2 Decorative 13A Switched Fused Spur with Neon Metal / White Insert Polished Stainless Steel
Part Code: 6041-045
Stock Code: 2764-5421
M2 Decorative 13A Switched Fused Spur with Neon Metal / White Insert Polished Stainless Steel
Part Code: 6041-045
Stock Code: 2764-5421
Features
- 5mm Shallow Plate
- 13A fuse fitted as standard
- Neon Indicator
- Polished Stainless Steel
- Matching Polished Stainless Steel Switch and Fuse Cover
Downloads
Specifications
- All images and text, © Copyright City Electrical Factors Ltd
- All images and text, © Copyright City Electrical Factors Ltd
- Brand
- M2
- Cable Clamp
- No
- Cable Outlet
- No
- Colour
- Polished Stainless Steel
- Compliance
- CE Compliant 93/68/EEC
- Current Rating
- 13A
- Depth
- 5mm
- Dimensions
- (H)86 mm x (W)86 mm x (D)5 mm
- Finish
- Polished Stainless Steel
- Fixing Centres
- 60.3mm
- Fuse Fitted
- Yes
- Guarantee
- 25 Years
- Height
- 86mm
- Insert Colours
- White
- Material
- Stainless Steel
- Mounting
- Wall
- Mounting Depth
- 25mm
- Neon
- Yes
- Number of Gangs
- 1
- Number of Poles
- Double Pole
- Number of Ways
- 1
- Packaging Types
- Each
- Product Range
- M2 Decorative
- Standards
- BS 1363
- Switched Unswitched
- Switched
- Unspsc V18
- 39121704
- Unspsc V24
- 39121704
- Voltage Rating
- 230V
- Weight
- 0.17000kg
- Width
- 86mm
