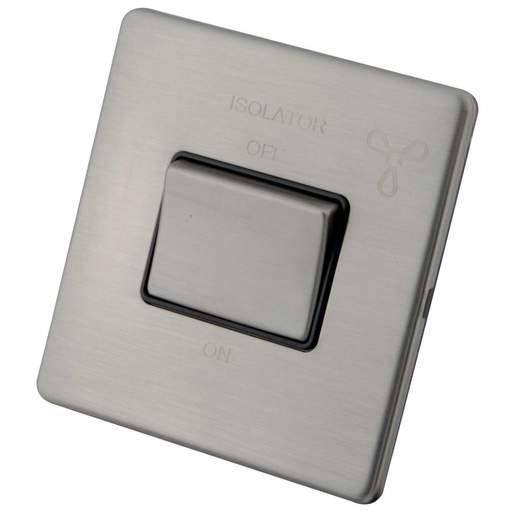

M2 Decorative Screwless 6A Triple Pole Fan Isolator Black Insert Brushed Stainless Steel
Part Code: 6532-011
Stock Code: 2764-8373
M2 Decorative Screwless 6A Triple Pole Fan Isolator Black Insert Brushed Stainless Steel
Part Code: 6532-011
Stock Code: 2764-8373
Features
- 6A Rated
- Screwless face plate
- Modern 4.5mm slim profile
- Simple clip on face plate
- Matching brushed stainless steel switch
- Protective lacquer coating
Specifications
- All images and text, © Copyright City Electrical Factors Ltd
- All images and text, © Copyright City Electrical Factors Ltd
- Brand
- M2
- Colour
- Stainless Steel
- Compliance
- CE Compliant 93/68/EEC
- Current Rating
- 6A
- Depth
- 4.5mm
- Dimensions
- (H)86 mm x (W)86 mm x (D)4.5 mm
- Finish
- Brushed Stainless Steel
- Fixing Centres
- 60.3mm
- Guarantee
- 25 Years
- Height
- 86mm
- Insert Colours
- Black
- Material
- Stainless Steel
- Mounting
- Wall
- Mounting Depth
- 16mm
- Neon
- No
- Number of Gangs
- 1
- Number of Poles
- Triple Pole
- Number of Ways
- 2
- Packaging Types
- Each
- Product Range
- M2 decorative screwless
- Standards
- BS EN 60669, BS 3676
- Terminal Capacity Earth
- 4 x 1 mm², 4 x 1.5 mm², 2 x 2.5 mm², 1 x 4 mm²
- Terminal Capacity Live Neutral
- 4 x 1 mm², 4 x 1.5 mm², 2 x 2.5 mm², 1 x 4 mm²
- Unspsc V18
- 39122226
- Unspsc V24
- 39122226
- Voltage Rating
- 230V
- Weight
- 0.20000kg
- Width
- 86mm
