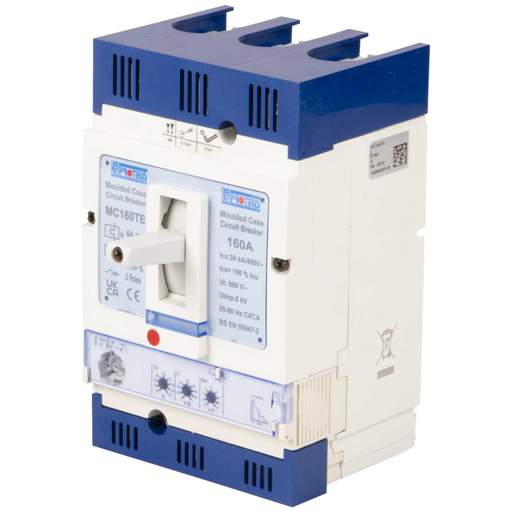

Proteus 160A Triple Pole 36kA Electronic MCCB
Part Code: MC160TE
Stock Code: 2765-0398
Proteus 160A Triple Pole 36kA Electronic MCCB
Part Code: MC160TE
Stock Code: 2765-0398
Features
- MC Range MCCB'S available from 16A to 250A [200A single pole]
- Triple pole may be fitted as outgoing devices in MC range panel boards
- Interrupting capacities up to 36kA at 400/415V AC
- Standard calibration is at 40 degrees
- Current limiting design
- Enclosures available for mounting individually [250A use larger frame size MC250TLF]
Downloads
Specifications
- All images and text, © Copyright City Electrical Factors Ltd
- All images and text, © Copyright City Electrical Factors Ltd
- Brand
- Proteus
- Current Rating
- 160A
- Depth
- 88mm
- Dimensions
- (H)169 mm x (W)106 mm x (D)88 mm
- Guarantee
- 1 Year
- Height
- 169mm
- IP Rating
- IP2X
- Incoming Terminal Capacity
- Tunnel Terminal 120mm²
- Number of Poles
- Triple Pole
- Packaging Types
- Each
- Product Range
- Electronic MCCBs
- Short Circuit Rating
- 36kA
- Standards
- BS EN 60947-2
- Unspsc V18
- 39121616
- Unspsc V24
- 39121616
- Voltage Rating
- 230V AC 400V AC
- Weight
- 1.80000kg
- Width
- 106mm
