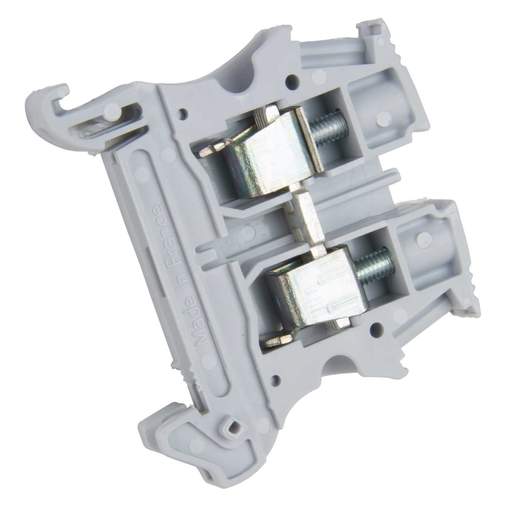

Legrand 6mm Terminal Block for Copper Cable Grey
Part Code: 037162
Stock Code: 0850-5277
Legrand 6mm Terminal Block for Copper Cable Grey
Part Code: 037162
Stock Code: 0850-5277
Features
- Terminal block for copper cable
- Screw connection
- Compatible with rigid (0.5mm² to 10mm²) copper cable
- Compatible with flexible (0.25mm² to 6mm²) copper cable
- Facility for 2 bridging combs
- Compatible with rails depth 15mm and EN 60715 rails depth 7.5mm and 15mm
- Range comprises only 2 block heights (2.5mm² to 10mm² and 16mm² to 70mm²) ensures neat installation
- Grey for standard connection
- All V2 Polyamide to 960°C
- 1 connection - 1 entry/1 exit
Specifications
- All images and text, © Copyright City Electrical Factors Ltd
- All images and text, © Copyright City Electrical Factors Ltd
- Colour
- Grey
- Current Rating
- 30A
- Dimensions
- (W)8 mm
- Guarantee
- 1 Year
- Material
- V2 Polyamide
- Mounting
- DIN Rail
- Packaging Types
- Each
- Product Range
- Viking 3 Terminal Blocks Connection
- Size
- 6mm²
- Standards
- IEC EN 60695
- Suitable For
- Copper Cable
- Type
- 6mm Terminal Block
- Unspsc V18
- 39121410
- Unspsc V24
- 39121410
- Weight
- 0.01200kg
- Width
- 8mm
