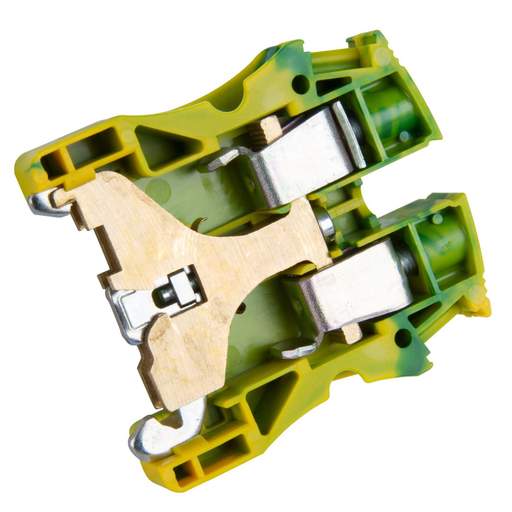

Legrand 16mm Terminal Block for Copper Cable Green / Yellow
Part Code: 037174
Stock Code: 0850-5307
Legrand 16mm Terminal Block for Copper Cable Green / Yellow
Part Code: 037174
Stock Code: 0850-5307
Features
- Terminal block for copper cable
- Screw connection
- Screwless fixing on rail up to 10mm width
- PEN from 10mm²
- Compatible with rigid (1.5mm² to 25mm²) copper cable
- Compatible with flexible (4mm² to 16mm²) copper cable
- Facility for 2 bridging combs
- Compatible with rails depth 15mm and EN 60715 rails depth 7.5mm and 15mm
- Range comprises only 2 block heights (2.5mm² to 10mm² and 16mm² to 70mm²) ensuring a neat installation
- Grey for standard connection
Specifications
- All images and text, © Copyright City Electrical Factors Ltd
- All images and text, © Copyright City Electrical Factors Ltd
- Colour
- Green/Yellow
- Dimensions
- (W)12 mm
- Guarantee
- 1 Year
- Material
- V2 Polyamide
- Mounting
- DIN Rail
- Packaging Types
- Each
- Product Range
- Viking 3 Terminal Blocks Protection
- Size
- 16mm²
- Standards
- IEC EN 60695
- Suitable For
- Copper Cable
- Type
- 16mm Terminal Block
- Unspsc V18
- 39121410
- Unspsc V24
- 39121410
- Weight
- 0.05800kg
- Width
- 12mm
