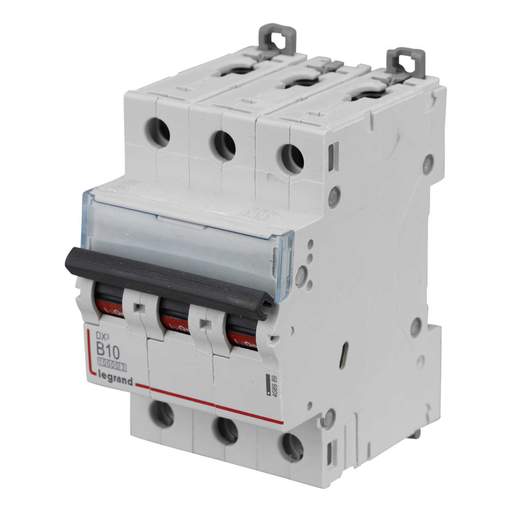

Legrand 10A Triple Pole 16kA B Curve MCB
Part Code: 408989
Stock Code: 2214-0019
Legrand 10A Triple Pole 16kA B Curve MCB
Part Code: 408989
Stock Code: 2214-0019
Features
- Thermal magnetic circuit breaker
- Protection against short circuits and overloads and isolation of electrical circuits
- 10kA rated in accordance with standard BS EN/IEC 60898-1
- 16kA rated in accordance with standard EN/IEC 60947-2
Downloads
Specifications
- All images and text, © Copyright City Electrical Factors Ltd
- All images and text, © Copyright City Electrical Factors Ltd
- Brand
- Legrand
- Current Rating
- 10A
- Depth
- 78mm
- Dimensions
- (H)83 mm x (W)53 mm x (D)78 mm
- Guarantee
- 1 Year
- Height
- 83mm
- Incoming Terminal Capacity
- Flexible 25mm², Rigid 35mm²
- Mounting
- DIN Rail
- Number of Modules
- 3
- Number of Poles
- Triple Pole
- Outgoing Terminal Capacity
- Flexible 25mm², Rigid 35mm²
- Packaging Types
- Each
- Product Range
- DX³
- Short Circuit Rating
- 16kA
- Standards
- BS EN 60898-1 EN/IEC 60947-2
- Tripping Characteristics
- B Curve
- Unspsc V18
- 39121603
- Unspsc V24
- 39121603
- Voltage Rating
- 415V
- Weight
- 0.441kg
- Width
- 53mm
