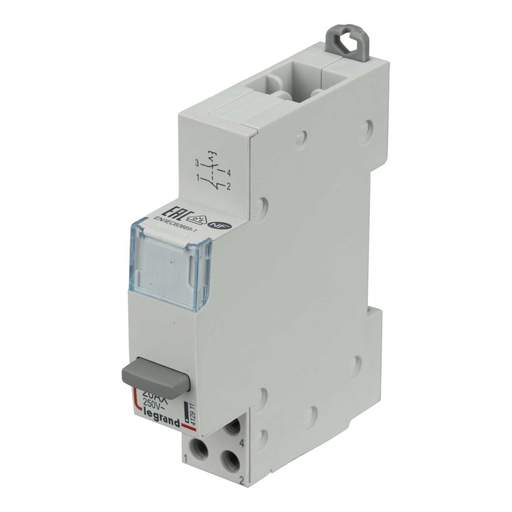

Legrand CX³ 20A 230V Pushbutton 1 NO + 1 NC
Part Code: 412911
Stock Code: 2214-0859
Legrand CX³ 20A 230V Pushbutton 1 NO + 1 NC
Part Code: 412911
Stock Code: 2214-0859
Features
- Maintained contact pushbutton 1 NO 1 NC contacts
- Nominal rating 20A - 250VA
- Compatible with fluorescent lamps [20AX]
- Maximum power with self-ballasted lamps [SBL]: 250W
- Accepts prong-type supply busbars
Downloads
Specifications
- All images and text, © Copyright City Electrical Factors Ltd
- All images and text, © Copyright City Electrical Factors Ltd
- Brand
- Legrand
- Contact Configuration
- 1 NO 1 NC
- Current Rating
- 20A
- Depth
- 61mm
- Dimensions
- (H)83 mm x (W)17.8 mm x (D)61 mm
- Guarantee
- 2 Years
- Height
- 83mm
- Indication
- Yes
- Mounting
- DIN Rail
- Number of Modules
- 1
- Packaging Types
- Each
- Product Range
- CX³
- Standards
- IEC 60669-1
- Unspsc V18
- 39122216
- Unspsc V24
- 39122216
- Voltage Rating
- 230V
- Weight
- 0.057kg
- Width
- 17.8mm
