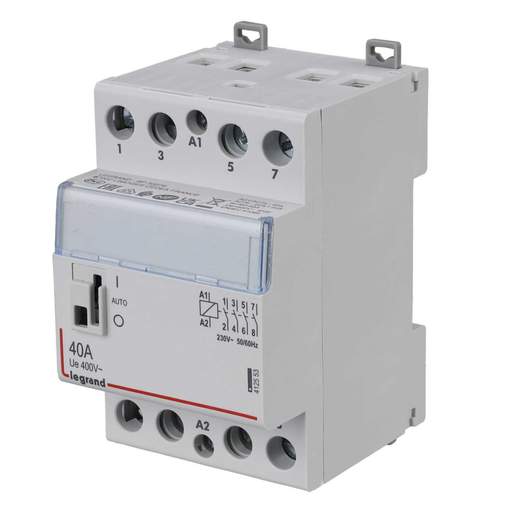

Legrand CX³ 40A 4 Pole Contactor 230V Coil and Handle 4 NO
Part Code: 412553
Stock Code: 2142-1114
Legrand CX³ 40A 4 Pole Contactor 230V Coil and Handle 4 NO
Part Code: 412553
Stock Code: 2142-1114
Features
- Manual override for test and repair function, carried out via the handle
- Permanent on or off without automatic closing of the contactor
- 40A power contactor with 230V AC coil and handle
- 4 Pole 400V AC contacts
- 4 NO contacts
- DIN rail mounted
- Space for power supply busbar on top [up to 25A]
Downloads
Specifications
- All images and text, © Copyright City Electrical Factors Ltd
- All images and text, © Copyright City Electrical Factors Ltd
- Brand
- Legrand
- Coil Voltage
- 230V AC
- Contact Configuration
- 4 NO
- Current Rating
- 40A
- Depth
- 61mm
- Dimensions
- (H)84.5 mm x (W)53.4 mm x (D)61 mm
- Guarantee
- 2 Years
- Height
- 84.5mm
- Mounting
- DIN Rail
- Number of Modules
- 3
- Number of Poles
- 4 Pole
- Packaging Types
- Each
- Product Range
- CX³
- Standards
- EN 61095
- Unspsc V18
- 39121529
- Unspsc V24
- 39121529
- Voltage Rating
- 415V
- Weight
- 0.34500kg
- Width
- 53.4mm
