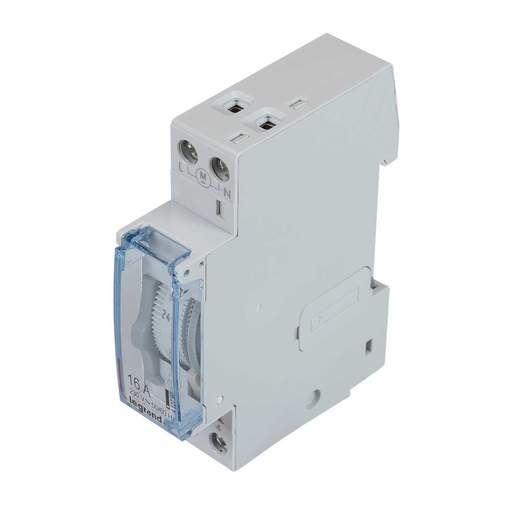

Legrand MicroRex QT11 16A 230V 1 Channel Time Switch
Part Code: 412790
Stock Code: 2214-0817
Legrand MicroRex QT11 16A 230V 1 Channel Time Switch
Part Code: 412790
Stock Code: 2214-0817
Features
- 24 hour programme
- 3 position override switch on/off/auto on front panel
- Programmable for 15 mins minimum at 15 min intervals
- 100 hour working reserve
- Manual changeover to summer/winter time
- IP30
Downloads
Specifications
- All images and text, © Copyright City Electrical Factors Ltd
- All images and text, © Copyright City Electrical Factors Ltd
- Brand
- Rex
- Contact Configuration
- 1 NO
- Current Rating
- 16A
- Current Rating Inductive
- 10A
- Depth
- 60mm
- Dimensions
- (H)86 mm x (W)17.5 mm x (D)60 mm
- Guarantee
- 2 Years
- Height
- 86mm
- Minimum Switching Time
- 15min
- Mounting
- DIN Rail
- Number of Channels
- 1
- Number of Modules
- 1
- Packaging Types
- Each
- Product Range
- MicroRex
- Standards
- EN 60730
- Switching Time
- 15min
- Type
- MicroRex
- Unspsc V18
- 39122208
- Unspsc V24
- 39122208
- Voltage Rating
- 230V AC
- Weight
- 0.088kg
- Width
- 17.5mm
