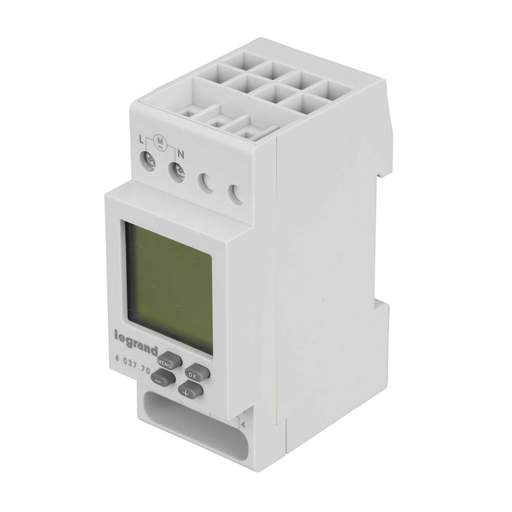

Legrand MicroRex D21 16A 230V 1 Channel Time Switch
Part Code: 603770
Stock Code: 2214-1087
Legrand MicroRex D21 16A 230V 1 Channel Time Switch
Part Code: 603770
Stock Code: 2214-1087
Features
- 1 Channel 24 hour / 7 day 16A 230V digital time switch
- 28 programmes
- Digital LCD display
- DIN rail mounting
- Programme consists of a on and off time and their assignment to certain days of the week [or a combination of days]
- Manual and automatic override on or off
- 3 years working reserve
- Replaceable battery
- IP20
Downloads
Specifications
- All images and text, © Copyright City Electrical Factors Ltd
- All images and text, © Copyright City Electrical Factors Ltd
- Brand
- Legrand
- Battery Back Up
- Yes
- Contact Configuration
- 1 CO
- Current Rating
- 16A
- Current Rating Inductive
- 10A
- Depth
- 66mm
- Dimensions
- (H)83 mm x (W)35.6 mm x (D)66 mm
- Guarantee
- 2 Years
- Height
- 83mm
- Mounting
- DIN Rail
- Number of Channels
- 1
- Number of Modules
- 2
- Packaging Types
- Each
- Product Range
- MicroRex
- Standards
- EN 60730
- Unspsc V18
- 39122208
- Unspsc V24
- 39122208
- Voltage Rating
- 230V AC
- Weight
- 0.132kg
- Width
- 35.6mm
