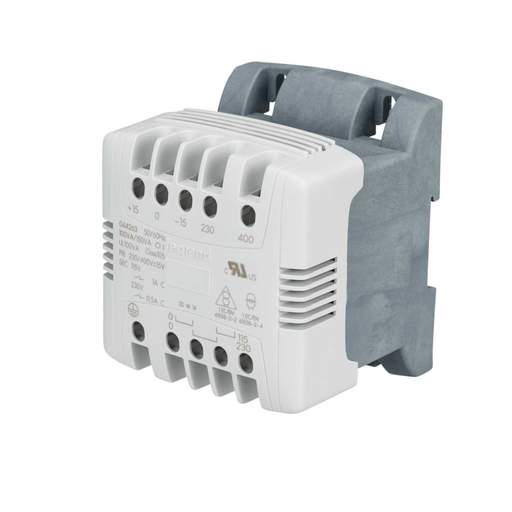

Legrand 230V / 415V to 110V / 230V 100VA Isolation Transformer
Part Code: 044263
Stock Code: 0394-6801
Legrand 230V / 415V to 110V / 230V 100VA Isolation Transformer
Part Code: 044263
Stock Code: 0394-6801
Features
- Control, safety and circuit isolation transformer
- Primary: 230 / 415V
- Secondary: 115 / 230V
- 100VA
- Supplied with 2 coupling strips
Downloads
Specifications
- All images and text, © Copyright City Electrical Factors Ltd
- All images and text, © Copyright City Electrical Factors Ltd
- Brand
- Legrand
- Depth
- 94mm
- Dimensions
- (H)113 mm x (W)94 mm x (D)94 mm
- Frequency
- 50/60 Hz
- Guarantee
- 1 Year
- Height
- 113mm
- Mounting
- DIN Rail / Panel
- Packaging Types
- Each
- Standards
- IEC EN 61558-2-2 and 2-4 or 2-6
- Unspsc V18
- 39121002
- Unspsc V24
- 39121002
- Va Rating
- 100VA
- Voltage Input
- 230V 415V
- Voltage Output(Secondary)
- 110V or 230V
- Weight
- 2.01000kg
- Width
- 94mm
