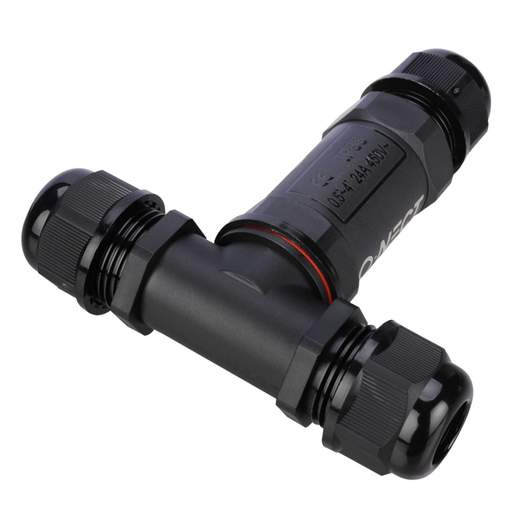

Unicrimp Q-NECT 24A 3 Way 5 Pole Tee Cable Connector IP68 Black
Part Code: QOE3053BLK
Stock Code: 2771-8324
Unicrimp Q-NECT 24A 3 Way 5 Pole Tee Cable Connector IP68 Black
Part Code: QOE3053BLK
Stock Code: 2771-8324
Features
- Tough nylon body
- 5 Pole 3 way
- 24A Current rating
- 5 Pole terminal block
- Unfused terminal block
- Accepts cable upto 2.5mm
- Submersible to 1 metre
- IP68 Rated
Downloads
Specifications
- All images and text, © Copyright City Electrical Factors Ltd
- All images and text, © Copyright City Electrical Factors Ltd
- Cable Size Range
- 6 - 14mm²
- Colour
- Black
- Compliance
- CE
- Current Rating
- 24A
- Diameter
- 30mm
- Dimensions
- (L)106 mm x (Dia)30 mm x (W)98 mm
- Guarantee
- 1 Year
- IP Rating
- IP68
- Length
- 106mm
- Material
- PA66 Fire-retardant
- Maximum Cable Diameter
- 30mm
- Maximum Operating Temperature
- 105°C
- Minimum Cable Diameter
- 14mm
- Minimum Operating Temperature
- -40°C
- Number of Poles
- 5 Pole
- Number of Terminals
- 5
- Packaging Types
- Each
- Standards
- BS 6220, BS EN 60670, BS EN 60529:1992 A2:2013
- Suitable For
- Round Cable
- Terminal Type
- Screw
- Type
- Weatherproof Cable Connector
- Unspsc V18
- 39121332
- Unspsc V24
- 39121332
- Voltage Rating
- 450V
- Weight
- 0.58000kg
- Width
- 98mm
