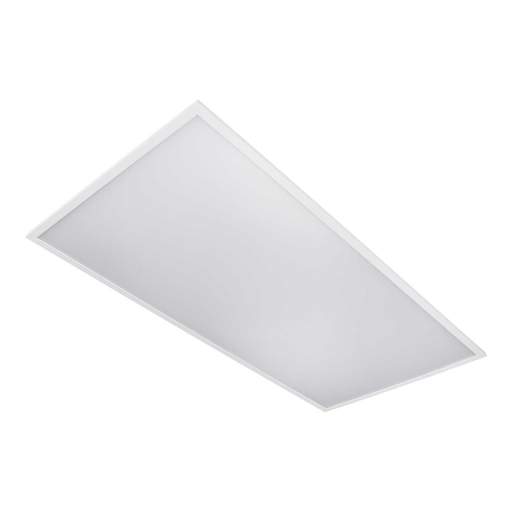

JCC Skytile Tp(a) UGR 48W 1200mm x 600mm LED Panel 5700K
Part Code: JC080132
Stock Code: 2772-1690
JCC Skytile Tp(a) UGR 48W 1200mm x 600mm LED Panel 5700K
Part Code: JC080132
Stock Code: 2772-1690
Features
- Meets Tp(a) requirements, suitable for all applications
- UGR
19 rating - Integrated LED
- Daylight white light [5700K]
- IP44 protection against dust and moisture
- Remote plug and play standard emergency [JCEM002] and self-test emergency packs [JCEM002ST] are available [sold separately]
- Register with JCC within 6 months of purchase to extend warranty / guarantee from 2 years to 5 years with 2 year on-site
Downloads
Specifications
- All images and text, © Copyright City Electrical Factors Ltd
- All images and text, © Copyright City Electrical Factors Ltd
- Beam Angle
- 90°
- Class Type
- Class 2
- Colour
- White
- Colour Rendering Index(Cri)
- 80
- Colour Temperature
- 5700 K
- Compliance
- UKCA, CE
- Depth
- 10.6mm
- Dimensions
- (L)1195 mm x (W)595 mm x (D)10.6 mm
- Dimmable
- No
- Efficacy Rating
- 100
- Energy Saving
- Yes
- Finish
- White
- Guarantee
- 2 Years
- IP Rating
- IP44
- Lamp Life
- 54000h
- Lamp Type
- Integrated LED
- Length
- 1195mm
- Light Source Energy Rating
- F
- Lumens Output
- 4800lm
- Material
- Aluminium / Polycarbonate
- Mounting
- Recessed
- Packaging Types
- Each
- Power Rating
- 48W
- Product Range
- Skytile Tp(a) UGR
- Suitable For
- Retro-fit of Existing T8 or T5 Fixtures
- Type
- TP[a]
- Unspsc V18
- 39111505
- Unspsc V24
- 39111505
- Voltage Rating
- 230V
- Weight
- 5kg
- Width
- 595mm
