Fluke Solar Multifunction PV Tester / Performance Analyzer with Software and PV Leads
Part Code: FLUKE SMFT 1000/PRO KIT
Stock Code: 2772-8086
Fluke Solar Multifunction PV Tester / Performance Analyzer with Software and PV Leads
Part Code: FLUKE SMFT 1000/PRO KIT
Stock Code: 2772-8086
Delivery
2 In Stock
Free delivery on orders over £50
£5.95 Delivery on orders under £50
Features
FLUKE SPRING DEALS - Running from 17th February - 31st July 2025 - The more you buy the better the free gift you will receive on the deal attached or visit www.fluke.co.uk/freegift
- All-in-one PV system test solution meeting IEC 62446-1 standards for Category 1 and Category 2 tests
- Protective conductor readings from 0.00Ω - 2000Ω
- Open-circuit voltage [VOC] measurement at the PV module/string up to 1000V DC
- Short-circuit [ISC] current measurement at the PV module/string up to 20A DC
- AC voltage measurement up to 750V
- AC/DC current with i100 clamp up to 100A
- Insulation resistance measurements up from 0.00MΩ - 999MΩ
- On-location I-V curve results compares manufacturer I-V curve data to measured data on the analyzer screen
- Supplied with MC4 solar clamp test lead set and Fluke TruTest software
Downloads
Specifications
- All images and text, © Copyright City Electrical Factors Ltd
- All images and text, © Copyright City Electrical Factors Ltd
- Ac Current Measurement
- 100A
- Ac Voltage Measurement
- 700V AC
- Battery Size
- AA
- Battery Type
- Alkaline
- Dc Current Measurement
- 100A DC
- Dc Voltage Measurement
- 1000V DC
- Dimensions
- (L)250 mm x (H)10 mm x (W)250 mm
- Display Type
- LCD
- Guarantee
- 3 Years
- Height
- 10mm
- Insulation Test Voltage
- 50V / 100V / 250V / 500V / 1000V
- Length
- 250mm
- Number of Batteries
- 6
- Packaging Types
- Each
- Supplied With

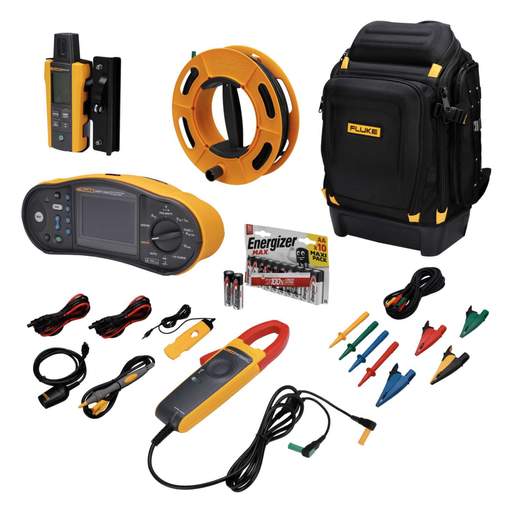

- Fluke SMFT-1000-BP Professional Tool Backpack, SMFT-1000 Multifunction PV Analyzer, Carry Strap, Fuse Pack, Adapter Cable IRDA Optical-to-USB, Zero Adapter, IRR2-BT Wireless Solar Irradiance Meter Pro, 80PR-IRR External Temperature Probe, Mounting Bracket, Carry Case, i100 AC/DC Current Clamp 100 A, TPAK Magnet Set, TP1000 Test Probe, Test leads, Coupler Set, TruTest Software, MC4 Solar Clamp Lead Set and Batteries
- Unspsc V18
- 41114407
- Unspsc V24
- 41114407
- Video Url
- https://www.youtube.com/embed/yWmoDidYZ8Q
- Weight
- 9kg
- Width
- 250mm
