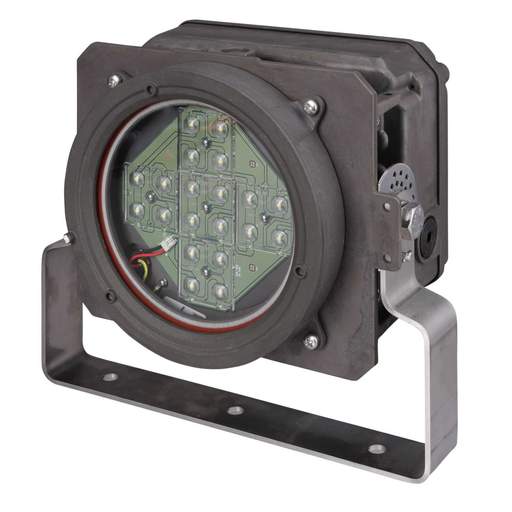

Crouse-Hinds CEAG PXLED 49W LED Hazardous Area Floodlight 5700K
Part Code: 13042111005
Stock Code: 2776-1731
Crouse-Hinds CEAG PXLED 49W LED Hazardous Area Floodlight 5700K
Part Code: 13042111005
Stock Code: 2776-1731
Features
- Explosion-protected LED floodlight series for Zone 1, 2, 21 and 22
- 1 x LED head with wide beam light distribution
- Daylight white light [5700K]
- Clear glass front
- 2 x M25 thread plastic plug
- Long lifetime
- Supplied with swivel bracket
Downloads
Specifications
- All images and text, © Copyright City Electrical Factors Ltd
- All images and text, © Copyright City Electrical Factors Ltd
- Atex Classificatio
- II 2 G Ex db eb op is q IIC T4 Gb, II 2 D Ex tb op is IIIC T100°C Db
- Cable Entry
- 2 x M25
- Certification Code
- BVS 17 ATEX E 013 X, IECEx BVS 17.0004 X
- Colour
- Dark Grey
- Colour Temperature
- 5700 K
- Depth
- 255mm
- Dimensions
- (H)265 mm x (W)343 mm x (D)255 mm
- Guarantee
- 5 Years
- Height
- 265mm
- IP Rating
- IP66
- Lamp Life
- 60000h
- Lamp Type
- Integrated LED
- Lumens Output
- 5207lm
- Material
- Die-Cast Aluminium / Glass
- Mounting
- Surface
- Operating Temperature Range
- -50 - +55°C
- Packaging Types
- Each
- Power Rating
- 49W
- Product Range
- PXLED
- Supplied With
- Swivel Bracket
- Unspsc V18
- 39111907
- Unspsc V24
- 39111907
- Video Url
- https://www.youtube.com/embed/ktqqNHjz--A
- Voltage Rating
- 100V 277V
- Weight
- 9.90000kg
- Width
- 343mm
- Zone Rating
- Zone 1 Zone 2 Zone 21 Zone 22
