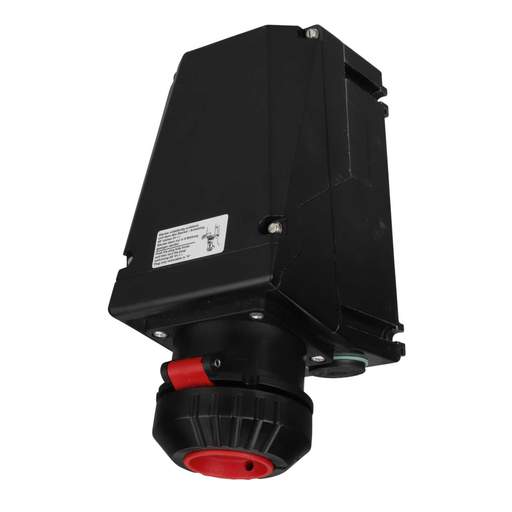

Crouse-Hinds CEAG 32A 3P+E 415V Zone 1 Ex Wall Socket IP66
Part Code: GHG5124406R3001
Stock Code: 2776-4638
Crouse-Hinds CEAG 32A 3P+E 415V Zone 1 Ex Wall Socket IP66
Part Code: GHG5124406R3001
Stock Code: 2776-4638
Features
- Suitable for Zone 1 and Zone 2 applications, and also Zone 21 and Zone 22 dust applications
- Easy plug in with low insertion force
- Suitable for indoor and outdoor use
- IP66 rated to indicate housing is dust tight and protected against water jets and rain
- Cable entry 2 x M32 metal thread
Downloads
Specifications
- All images and text, © Copyright City Electrical Factors Ltd
- All images and text, © Copyright City Electrical Factors Ltd
- Atex Classificatio
- II 2G / Ex db eb [ia] IIC / EX IIB H2 T6 II 2 D Ex IIIC / IIIB T80 Db
- Certification Code
- IECEX BVS 17.0045X
- Colour
- Red
- Current Rating
- 32A
- Depth
- 147mm
- Dimensions
- (H)236 mm x (W)110 mm x (D)147 mm
- Guarantee
- 1 Year
- Height
- 236mm
- IP Rating
- IP66
- Material
- Polyamide
- Mounting
- Surface
- Number of Pins
- 5
- Number of Poles
- 3P E
- Packaging Types
- Each
- Unspsc V18
- 39121406
- Unspsc V24
- 39121406
- Voltage Rating
- 415V
- Weight
- 0.23900kg
- Width
- 110mm
- Zone Rating
- Zone 1 Zone 2 Zone 21 Zone 22
