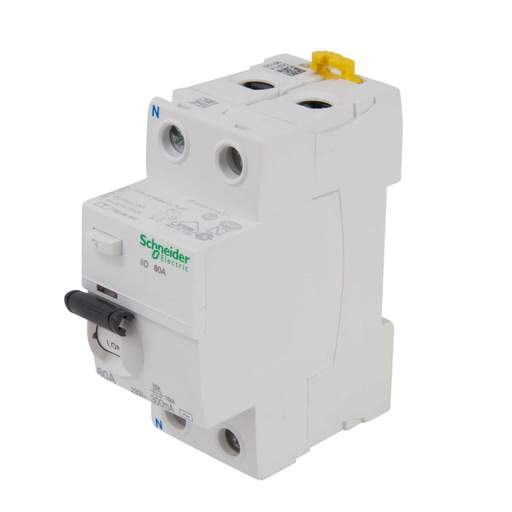

Schneider Acti9 80A 2 Pole 300mA Type AC RCD
Part Code: A9R14280
Stock Code: 0016-0051
Schneider Acti9 80A 2 Pole 300mA Type AC RCD
Part Code: A9R14280
Stock Code: 0016-0051
Features
- Neutral position left
- Network type AC
- Earth leakage protection time delay instantaneous
- Earth leakage protection class AC
- Rated breaking and making capacity lm 1500A
- Rated conditional short circuit current lnc 10kA 80A
- Network frequency 50/60Hz
- Electromechanical residual current tripping technology
- Toggle control type
- Fixed mounting mode
Downloads
Specifications
- All images and text, © Copyright City Electrical Factors Ltd
- All images and text, © Copyright City Electrical Factors Ltd
- Current Rating
- 80A
- Depth
- 75mm
- Dimensions
- (H)81 mm x (W)36 mm x (D)75 mm
- Guarantee
- 18 Months
- Height
- 81mm
- Mounting
- DIN Rail
- Number of Modules
- 2
- Number of Poles
- 2 Pole
- Packaging Types
- Each
- Previously Known As
- RMG803002
- Product Range
- Acti9
- Rcd Type
- AC
- Short Circuit Rating
- 10kA
- Standards
- IEC 60947, IEC 61008
- Tripping Sensitivity
- 300mA
- Unspsc V18
- 39121614
- Unspsc V24
- 39121614
- Voltage Rating
- 230V
- Weight
- 0.20000kg
- Width
- 36mm
