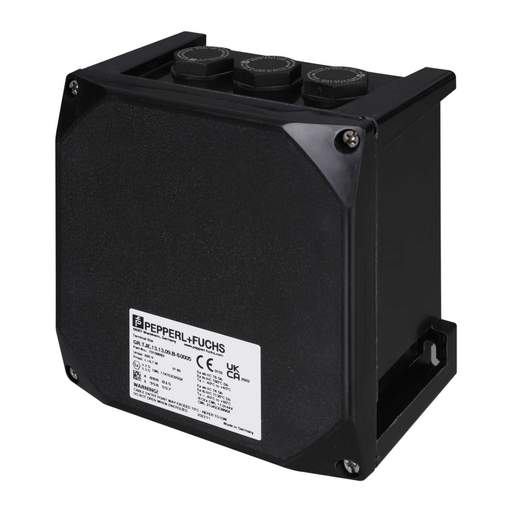

Pepperl & Fuchs Zone 1 Ex Junction Box with 12 x UT2.5 Terminals GRP
Part Code: 70108693
Stock Code: 2779-8463
Pepperl & Fuchs Zone 1 Ex Junction Box with 12 x UT2.5 Terminals GRP
Part Code: 70108693
Stock Code: 2779-8463
Features
- Carbon loaded, antistatic glass-fibre reinforced polyester
- Installation in Zone 1, Zone 2, Zone 21 and Zone 22
- Ex e and Ex tb certified
- Terminals 12 x UT2.5 and 2 x UT2.5 PE
- Modern design with high impact resistance
- Easy installation due to easily accessible mounting points
- Easy cover opening without damage due to multiple pry points
- Top face stopping plug polyamide, 3 x M20; bottom face stopping plug polyamide, 3 x M20
Downloads
Specifications
- All images and text, © Copyright City Electrical Factors Ltd
- All images and text, © Copyright City Electrical Factors Ltd
- Atex Classificatio
- II 2 GD, Ex eb IIC T* Gb, Ex tb IIIC T** °C Db, T6/T80 °C @ Ta +40 °C, T4/T130 °C @ Ta +60 °C
- Cable Entry
- 6 x M20
- Certification Code
- CML 21 UKEX 3896X
- Colour
- Black
- Depth
- 85mm
- Dimensions
- (H)129 mm x (W)129 mm x (D)85 mm
- Guarantee
- 1 Year
- Height
- 129mm
- IP Rating
- IP66
- Material
- GRP
- Number of Terminals
- 12
- Packaging Types
- Each
- Terminal Capacity
- 2.5mm²
- Unspsc V18
- 39121332
- Unspsc V24
- 39121332
- Weight
- 0.61000kg
- Width
- 129mm
- Zone Rating
- Zone 1 Zone 2 Zone 21 Zone 22
