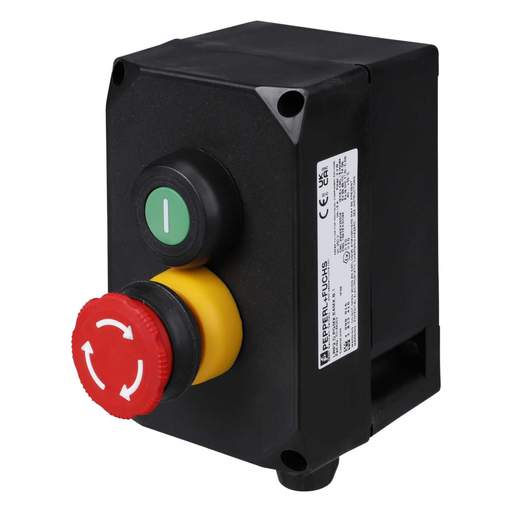

Pepperl & Fuchs Start / Emergency Stop Ex Control Station Polyamide
Part Code: 70144003
Stock Code: 2779-8493
Pepperl & Fuchs Start / Emergency Stop Ex Control Station Polyamide
Part Code: 70144003
Stock Code: 2779-8493
Features
- Pushbutton green 1 NO 1 NC labeling 'l'
- Emergency stop mushroom button 40mm, red, twist-to-release 1 NO 1 NC
- Polyamide [PA] enclosure
- Ex db eb and Ex tb certified
- Installation in Zone 1, Zone 2, Zone 21 and Zone 22
- Pushbutton with interchangeable inserts
- Degree of protection IP66
- Bottom face cable gland polyamide, 1 x M20
Downloads
Specifications
- All images and text, © Copyright City Electrical Factors Ltd
- All images and text, © Copyright City Electrical Factors Ltd
- Atex Classificatio
- II 2 GD, Ex db eb IIC T* Gb, Ex tb IIIC T** °C Db, T4/T130 °C @ Ta 55 °C
- Cable Entry
- 1 x M20
- Certification Code
- CML 16 ATEX 3009X
- Compliance
- UKCA, CE, IEC, IECEx
- Contact Configuration
- 1 NO 1 NC
- Current Rating
- 13A
- Depth
- 85mm
- Dimensions
- (H)132 mm x (W)88 mm x (D)85 mm
- Guarantee
- 1 Year
- Height
- 132mm
- IP Rating
- IP66
- Material
- Polyamide
- Packaging Types
- Each
- Unspsc V18
- 39122214
- Unspsc V24
- 39122214
- Voltage Rating
- 230V
- Weight
- 1.50000kg
- Width
- 88mm
- Zone Rating
- Zone 1 Zone 2 Zone 21 Zone 22
