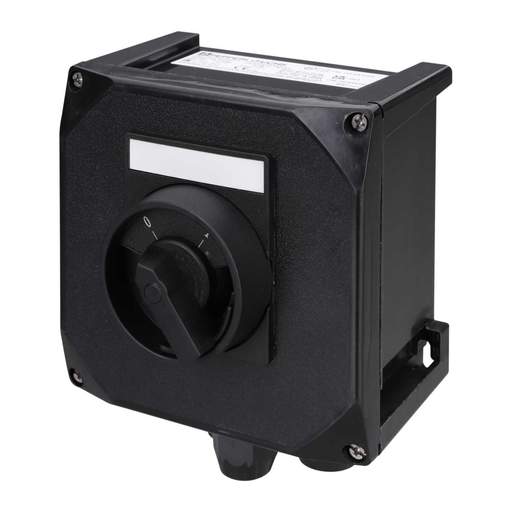

Pepperl & Fuchs 16A 3 Pole Ex GRP Switch Disconnector 1 x NO Auxiliary
Part Code: 70143983
Stock Code: 2779-8508
Pepperl & Fuchs 16A 3 Pole Ex GRP Switch Disconnector 1 x NO Auxiliary
Part Code: 70143983
Stock Code: 2779-8508
Features
- Switch disconnector, 2 position with left off 3NO
- Auxiliary contacts 1NO
- Installation in Zone 1, Zone 2, Zone 21 and Zone 22
- Carbon loaded, antistatic glass fibre reinforced polyester
- Bottom face cable glands polyamide, 2 x M25 1 x M20
- Ex db eb and Ex tb certified
- Padlockable switch
- Degree of protection: IP66
Downloads
Specifications
- All images and text, © Copyright City Electrical Factors Ltd
- All images and text, © Copyright City Electrical Factors Ltd
- Atex Classificatio
- II 2 GD, Ex db eb IIC T4 Gb, Ex tb IIIC T80 °C Db, T4/T130 °C @ Ta 55 °C
- Certification Code
- CML 16 ATEX 3009X
- Colour
- Black
- Current Rating
- 16A
- Depth
- 85mm
- Dimensions
- (H)129 mm x (W)129 mm x (D)85 mm
- Guarantee
- 1 Year
- Height
- 129mm
- IP Rating
- IP66
- Material
- GRP
- Number of Poles
- 3 Pole
- Packaging Types
- Each
- Unspsc V18
- 39122214
- Unspsc V24
- 39122214
- Voltage Rating
- 400V
- Weight
- 2.20000kg
- Width
- 129mm
- Zone Rating
- Zone 1 Zone 2 Zone 21 Zone 22
