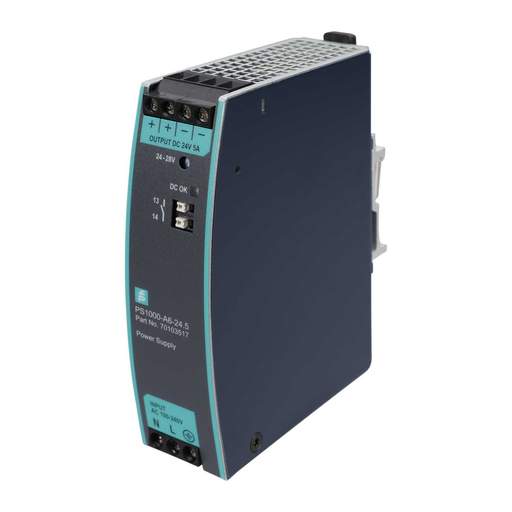

Pepperl & Fuchs 110 / 230V AC to 24V DC 5A Ex Power Supply
Part Code: 70103517
Stock Code: 2779-8514
Pepperl & Fuchs 110 / 230V AC to 24V DC 5A Ex Power Supply
Part Code: 70103517
Stock Code: 2779-8514
Features
- 100V AC to 240V AC wide range input
- Output 24V DC, 5A, 120W, 1 phase
- Housing width 32mm
- Efficiency up to 94.3%
- Minimal inrush current surge
- DC OK relay contact
- Suitable for Zone 2 / div. 2 mounting
Downloads
Specifications
- All images and text, © Copyright City Electrical Factors Ltd
- All images and text, © Copyright City Electrical Factors Ltd
- Atex Classificatio
- Ex II 3G Ex ec nC II T4 Gc
- Certification Code
- EPS 19 ATEX 1201 X
- Current Rating
- 5A
- Depth
- 102mm
- Dimensions
- (H)124 mm x (W)32 mm x (D)102 mm
- Guarantee
- 1 Year
- Height
- 124mm
- Mounting
- DIN Rail
- Packaging Types
- Each
- Power Output
- 120W
- Unspsc V18
- 39121002
- Unspsc V24
- 39121002
- Voltage Input
- 230V 110V
- Voltage Output
- 24V DC
- Weight
- 0.44000kg
- Width
- 32mm
- Zone Rating
- Zone 2
